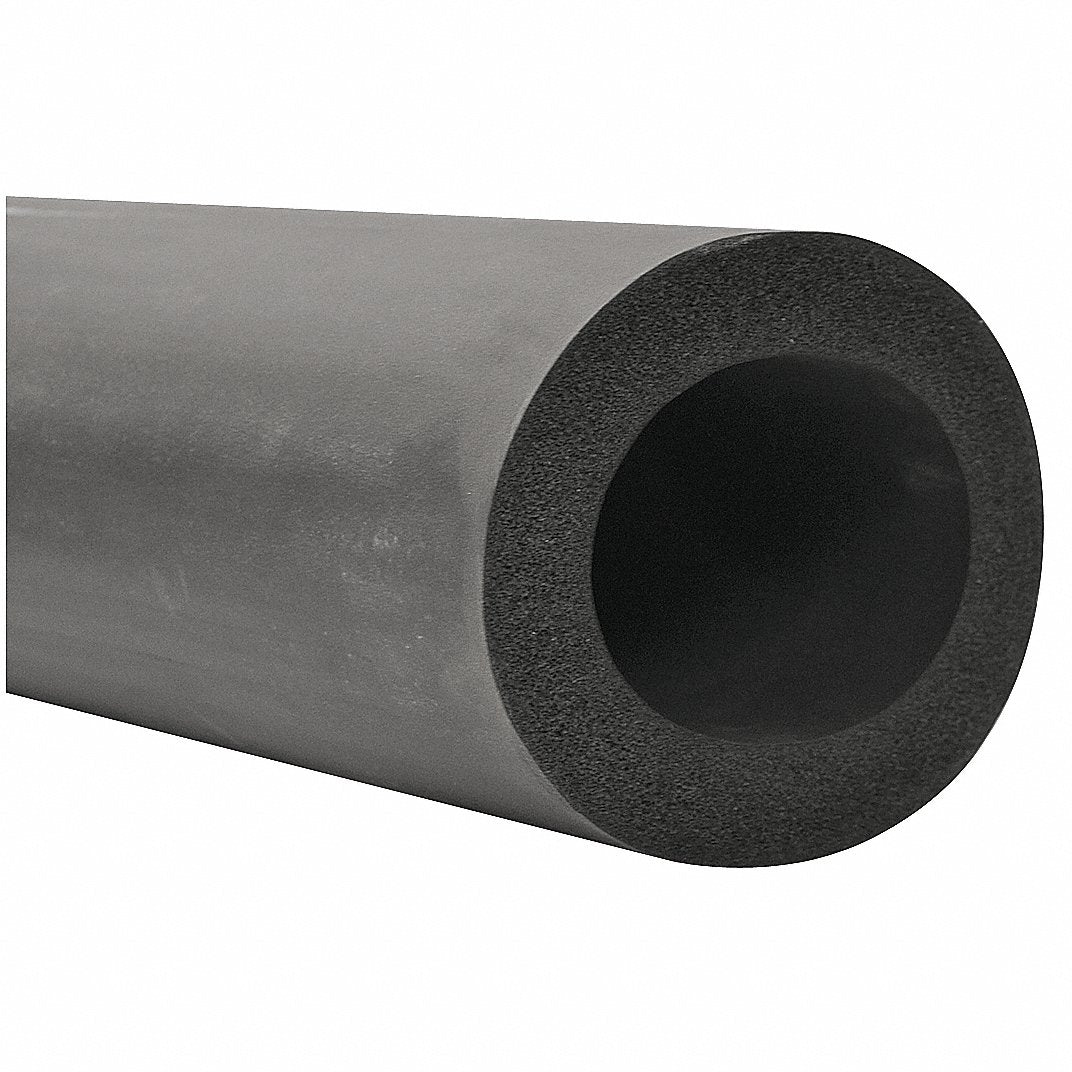

Aeroflex 508-AC7810 Aerocel Insulation Unslit Tube 1/2-in IPS (7/8-in ID) x 1-in Insulation 120 ft Length

Product Description

The AEROFLEX 508-AC7810 Aerocel Insulation Unslit Tube is a closed-cell elastomeric foam pipe insulation designed for thermal performance and moisture protection. This unslit tube, with a 7/8 inch Inside Diameter and 1/2 inch Iron Pipe Size, is 120 ft in length and features a 1 inch wall thickness. It is suitable for new installations, easily sliding over piping, and can be slit for existing installations, offering consistent, long-lasting thermal performance.

• Minimal cracking, weather, and UV resistance.
• Fire resistant with a built-in vapor barrier.
• Easily slides over new installation piping or can be slit for existing installations.

Product Highlights

Proprietary EPDM-rubber blend ensures consistent thermal performance and protection against moisture.

Product Information

Standard Information

• Brand: AEROFLEX
• Manufacturer Part Number: 508-AC7810

Technical Specifications

• Inside Diameter: 7/8 in
• Iron Pipe Size: 1/2 in
• Length: 120 ft
• Wall Thickness: 1 in
• Specific Gravity: 0.04-0.06
• Service Temperature: -297 to 257 deg F (-182 to +125 deg C)
• Thermal Conductivity: 0.245 Btu-in/hr-sq-ft-deg F at Mean temp 75 deg F
• Water Absorption: 0.2% by volume Max
• Water Vapor Permeability: 0.03 perm-in
• Flammability: Self-extinguishing
• Flame Spread Index: 25
• Smoke Developed Index: 50
