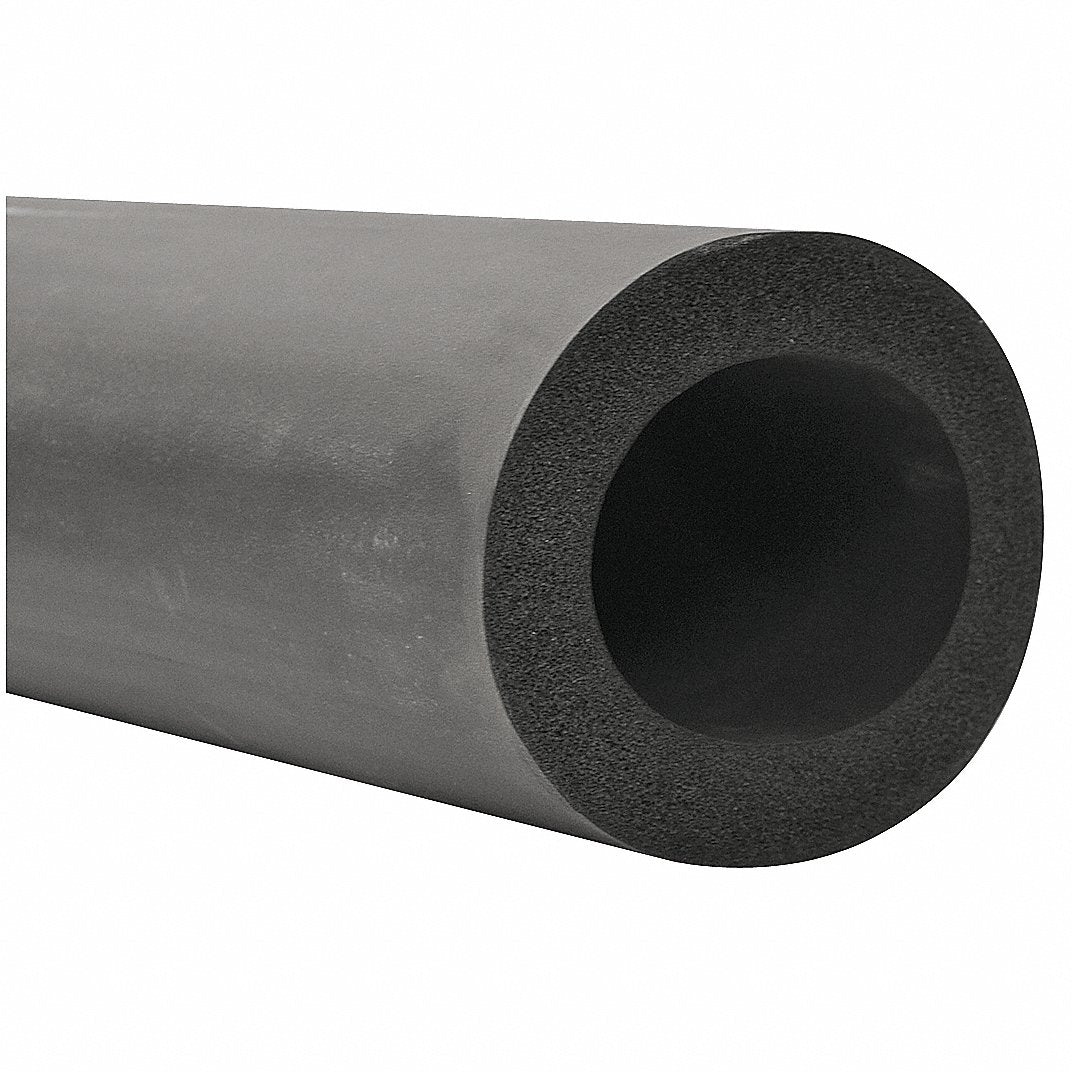

Aeroflex 500-AC3810 Aerocel Insulation Unslit Tube 1/8-in IPS (3/8-in ID) x 1-in Insulation

Product Description

The AEROFLEX 500-AC3810 Aerocel Insulation Unslit Tube is a closed-cell elastomeric foam pipe insulation designed for thermal performance and moisture protection. This 1/8-inch IPS (3/8-inch ID) x 1-inch wall thickness insulation can be easily slid over new piping or slit for existing installations. Its proprietary EPDM-rubber blend ensures consistent, long-lasting thermal performance and protection against environmental stresses, meeting energy code and condensation control requirements.

• Features a service temperature range of -297 to 257 deg F (-182 to +125 deg C).
• Provides a built-in vapor barrier and exhibits minimal cracking with weather and UV resistance.
• Self-extinguishing flammability with a 25 Flame Spread Index and 50 Smoke Developed Index.

Product Highlights

Closed-cell elastomeric foam insulation for thermal efficiency and moisture control in piping systems.

Product Information

Standard Information

• Brand: AEROFLEX
• Manufacturer Part Number: 500-AC3810

Technical Specifications

• Inside Diameter: 3/8 in
• Iron Pipe Size: 1/8 in
• Length: 138 ft
• Wall Thickness: 1 in
• Specific Gravity: 0.04-0.06
• Service Temperature: -297 to 257 deg F (-182 to +125 deg C)
• Thermal Conductivity: 0.245 Btu-in/hr-sq-ft-deg F at Mean temp 75 deg F
• Water Absorption: 0.2% by volume Max
• Water Vapor Permeability: 0.03 perm-in
• Flammability: Self-extinguishing
• Density: 3.0 to 6.0 sq-ft/lb
• Fire Resistance: Yes
• Flame Spread Index: 25
• Vapor Barrier: Built-in
• Smoke Developed Index: 50
