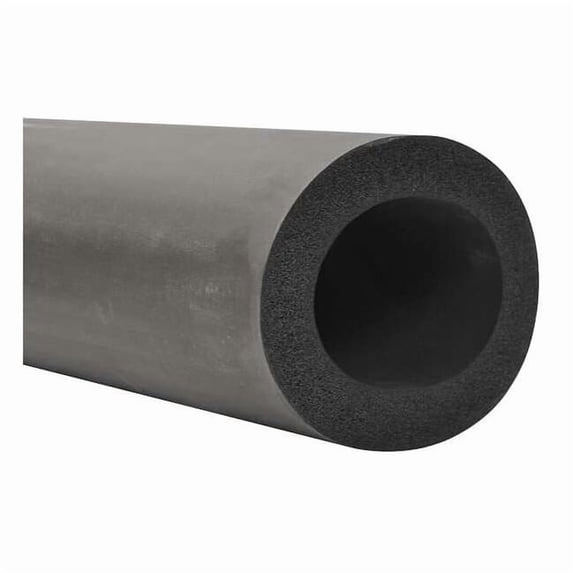

Aeroflex 408-AC7834 Aerocel AC Pipe Insulation 7/8 Inch 6 ft Length

Product Description

The AEROFLEX 408-AC7834 Aerocel AC pipe insulation features a closed cell and flexible design. Constructed from EPDM, this insulation is 7/8 inch, with a 3/4 inch inside diameter and 6 ft length. It resists moisture and UV exposure, offering low thermal conductivity. Designed for HVAC and refrigeration applications.

• Closed Cell
• Flexible
• Resists Moisture
• Resists UV
• Low thermal conductivity
• Flame spread rating of 25 or less
• Smoke developed rating of 50

Product Highlights

Ideal for insulating pipes in HVAC and refrigeration systems, this EPDM insulation provides thermal resistance and protection against environmental factors.

Product Information

Standard Information

• Brand: AEROFLEX
• Manufacturer Part Number: 408-AC7834
• Country of Origin: USA

Technical Specifications

• Type: Closed Cell, Flexible
• Color: Black
• Length: 6 ft
• Series: AC
• Resists: Moisture, UV
• Material: EPDM
• R Factor: R3.06
• Manufacturer: Aeroflex
• Nominal Size: 7/8 Inch
• Wall Thickness: 3/4 Inch
• Inside Diameter: 7/8 in
• Thermal Conductivity: 0.245 BtuH
• Insulation Material: EPDM
• Form: Tube
• For Pipe Size: 1/2 in
• For Copper Tube Size: 7/8 in
• Overall Length: 6 ft
• Installation Style: Unslit
• Outside Diameter: 2-3/8 in
• Thickness: 3/4 in
• Insulation R-Value: 3.06
• Minimum Operating Temperature: -297 °F
• Maximum Operating Temperature: 300 °F
• Plenum Rating: Plenum Rated
• Foam Cell Type: Closed
• Flexibility: Flexible
• For Material Type: Copper; Stainless Steel
• K Value: 0.25 BTU
• Outdoor Weather Protection: None Required
• Resistance Properties: Corrosion-Resistant; UV-Resistant
• Flame Spread Index: 20
• Smoke Developed Index: 50
• Standards: ASTM C534; ASTM C692; ASTM D635; ASTM E84; ASTM E96
• Model: 408-AC7834
• Connection Type: Unslit
• Construction: Closed Cell, Flexible
• Domestic/Import: Domestic
• Facing Type: Unfaced
• For Pipe Type: Copper, Iron Pipe, Stainless Steel
• R-Value: 3.06
• Style: Unslit Tube
• Temperature Rating: -297-257 °F
• Thermal Resistance: R-3.06
• Shape: Tube
