Description

Product Description

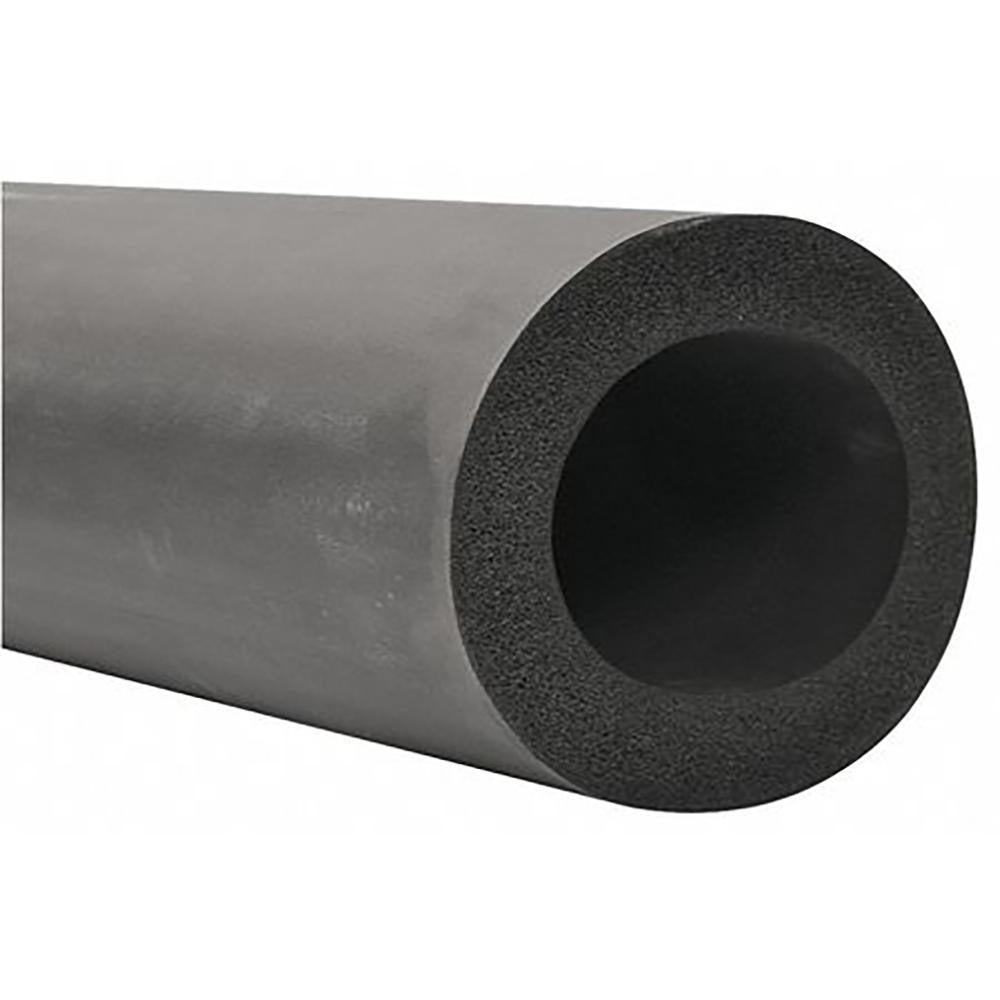

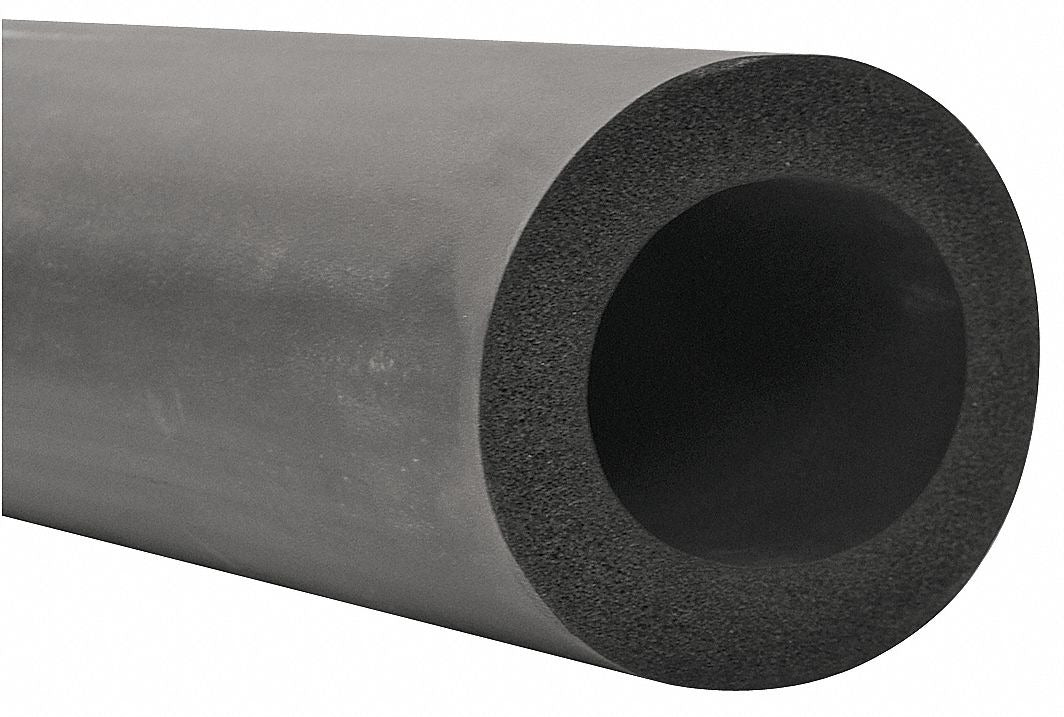

The Aeroflex 216-AC15838 is an Aerocel closed-cell EPDM pipe insulation tube designed for HVAC and refrigeration piping. It is supplied as a 6 ft unslit tube with a nominal 1-5/8 inch size, 1-1/2 inch inside diameter and 3/8 inch wall thickness. The material provides low thermal conductivity (0.245 BtuH), an R-value of 1.53 and a service temperature range from -70 to 300 deg F, and is moisture- and UV-resistant.

  • Closed-cell EPDM construction; unslit tube form for straight runs
  • Dimensions: nominal 1-5/8 in, inside diameter 1-1/2 in, wall 3/8 in, length 6 ft
  • Thermal: thermal conductivity 0.245 BtuH, R-value 1.53; temperature range -70 to 300 deg F; flame spread ≤25, smoke developed 50

Product Highlights

Closed-cell EPDM pipe insulation tube, 6 ft length, 3/8 in wall, R-Value 1.53, rated for HVAC and refrigeration applications

Product Information

Standard Information

  • Brand: AEROFLEX
  • Manufacturer Part Number: 216-AC15838
  • Country of Origin: United States
Technical Specifications
Brand
Aeroflex
Manufacturer Part Number
216-AC15838
Series
AC
Product Name
Aerocel pipe insulation
Material
EPDM
Form
Tube
Installation Style
Unslit
Type
Closed-cell, flexible
Foam Cell Type
Closed
Nominal Size
1-5/8 Inch
Inside Diameter
1-1/2 Inch
Outside Diameter
2.25 Inch
Wall Thickness
3/8 Inch
Length
6 ft
Overall Length
6 ft
R-Value
1.53
Thermal Conductivity
0.245 BtuH (source lists this value; units appear abbreviated)
Temperature Range
-70 to 300 deg F
Flame Spread Rating
25 or less
Smoke Developed Rating
50
Resists
Moisture; UV
Plenum Rating
Plenum Rated
Flexibility
Flexible
Applications
HVAC and refrigeration; chilled water, hot liquid and refrigeration piping systems
Standards/Approvals
ASTM C534; ASTM D1056; UL 181; UL 94; UL 723 Listed
For Copper Tube Size
1-5/8 in
Corrosion Resistance
Non-corrosive to copper and stainless steel
Country of Origin
United States
