Aegis SGR-52.5-0A4W Shaft Grounding Ring With Conductive Epoxy Mounting

Product Description

The Aegis SGR-52.5-0A4W Shaft Grounding Ring prevents electrical damage to motor bearings by safely channeling harmful currents to ground. This product utilizes proprietary Electron Transport Technology, which incorporates conductive microfibers to provide a path of least resistance for damaging bearing currents. This helps in preventing electrical damage to motor bearings and significantly extends the life of the motor.

• Fits shaft diameters from 2.1060 inches to 2.1450 inches

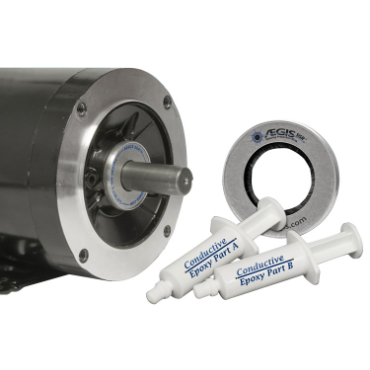

• Includes Aegis SGR ring and conductive epoxy
• Available in various kits for different motor shaft diameters

Product Highlights

This product is vital for protecting motors in various industrial applications from electrical damage.

Product Information

Standard Information

• Brand: Aegis
• Part Number: SGR-52.5-0A4W

Technical Specifications

• Inside Diameter (Min): 2.1060 inches
• Inside Diameter (Max): 2.1450 inches
• Outside Diameter: 3.1000 inches
• Thickness (Max): 0.2950 inches
• Shaft Diameter Range: 2.106 to 2.145 inches
• Mounting Type: Split Ring
• Weight: 1.0 pounds
