Aegis SGR-2.125-UKIT-1A4 SGR uKIT Shaft Grounding Ring with Universal Mounting Brackets 2 1/8 in

Product Description

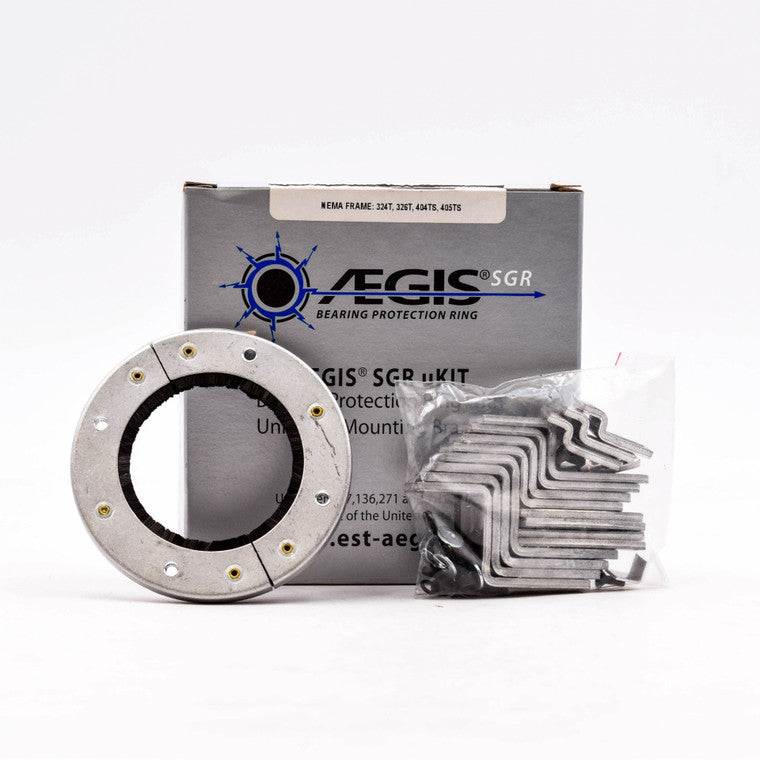

The AEGIS SGR-2.125-UKIT-1A4 is an AEGIS® Shaft Grounding Ring designed for a motor's shaft diameter. It features four mounting bracket styles and hardware to adapt the AEGIS® ring to virtually any end bracket. It is screw-on or AEGIS® Conductive Epoxy Adhesive mounting capable and fits over slingers, seals, or shaft shoulders. Fits almost any motor design in NEMA frames from 56 to 449T or IEC frames from 132M to 355M.

• Designed for the motor’s "U" dimension – shaft diameter
• Includes four mounting bracket styles and hardware to adapt the AEGIS® ring
• Screw on or AEGIS® Conductive Epoxy Adhesive mounting capable

Product Highlights

The AEGIS SGR uKIT is a shaft grounding ring with universal mounting brackets, designed to protect motor bearings from electrical discharge machining (EDM).

Product Information

Standard Information

• Brand: AEGIS
• Manufacturer Part Number: SGR-2.125-UKIT-1A4
• Country of Origin: United States

Technical Specifications

• Type: Split Ring
• Shaft Dia.: 2 1/8 in
• Model: SGR-2.125-UKIT-1A4
• Brand: AEGIS
• Ring Type: NEMA uKIT Split Ring
• Height: 3.50 in
• Width: 0.32 in
• Depth: 2.13 in
• NEMA Shaft Diameter: 2.125"
