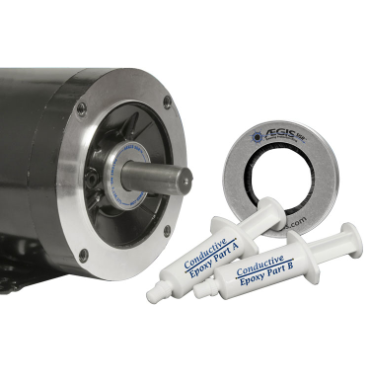

Aegis SGR-14.4-0AW Shaft Grounding Ring With Conductive Epoxy Mounting

Product Description

The Aegis SGR-14.4-0AW Shaft Grounding Ring effectively channels harmful currents away from motor bearings to prevent electrical damage. This product uses advanced Electron Transport Technology, which consists of conductive microfibers that provide a reliable path for these currents, preserving the integrity of motor bearings and enhancing motor life.

• Prevents electrical damage to motor bearings.
• Includes conductive epoxy for easy installation.
• Compatible with various motor shaft diameters.

Product Highlights

This ring provides a solid and dependable solution for motor protection, ensuring durability and performance in various applications.

Product Information

Standard Information

• Brand: Aegis
• MPN: SGR-14.4-0AW

Technical Specifications

• Inside Diameter (Max): 0.6450 in
• Mounting Type: Solid Ring
• Thickness (Max): 0.2950 in
• Inside Diameter (Min): 0.6060 in
• Outside Diameter: 1.6000 in
• Shaft Diameter Range: 0.606 to 0.645 in
• Weight: 1.0 lb
