Aegis 90353080 Whizweld® BRANCHLET™ Welding Outlet

Product Description

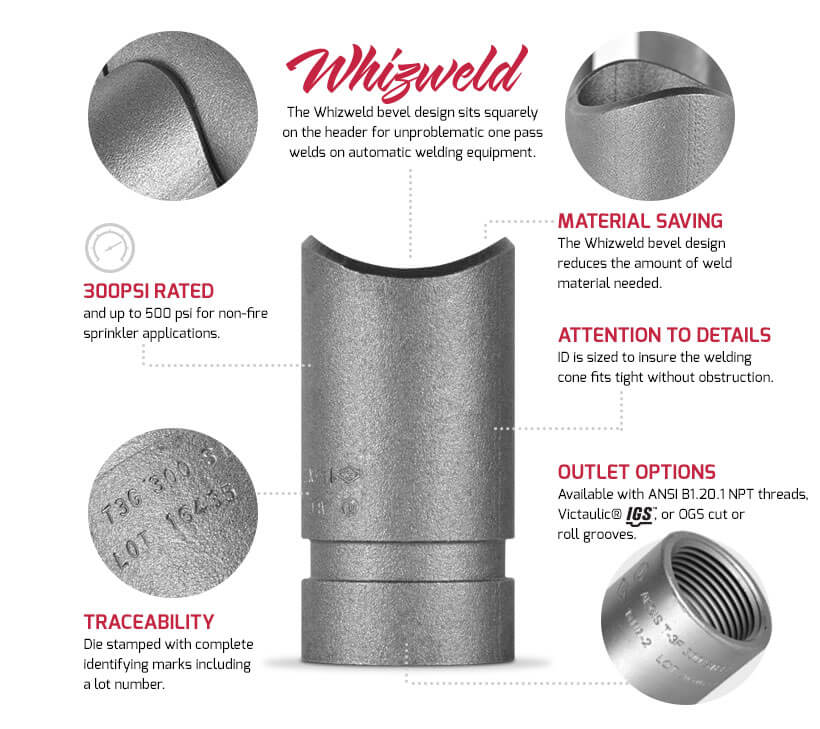

The Aegis 90353080 Whizweld® BRANCHLET™ is an easy-to-weld outlet with a beveled design that allows it to sit squarely on the header for uncomplicated, one-pass welds with automatic welding equipment. Its inside diameter is sized to ensure the welding cone fits without obstruction. It saves installers valuable time and material and is qualified to be welded on various proprietary thin wall flow pipe as well as industry standard pipe schedules 10 and 40.

• Material Saving: The Whizweld bevel design reduces the amount of weld material needed.
• UL Listed: Listed in accordance to UL 213B with qualifying tests up to 1500psi.
• FM Approved: Approved in accordance to FM Class 1920 with qualifying tests up to 1200psi.

Product Highlights

This welding outlet is precision manufactured from highly weldable carbon steel and coated with a proprietary smokeless non-flash rust inhibitor for improved shelf life. It is fully traceable with complete identifying marks.

Product Information

Standard Information

• Brand: AEGIS
• Manufacturer Part Number: 90353080

Technical Specifications

• Outlet Nominal (A): 3"
• Header Nominal (B): 8"
• Outlet Length (C): 3"
• Inside Dia. (D): 3.068"
• Outside Dia. (E): 3.500"
• Wall Thickness SCH 40 (F): 0.216"
• Weight SCH 40: 1.73 lbs
