Aegis 90352560 Whizweld® branchlet™ welding outlet

Product Description

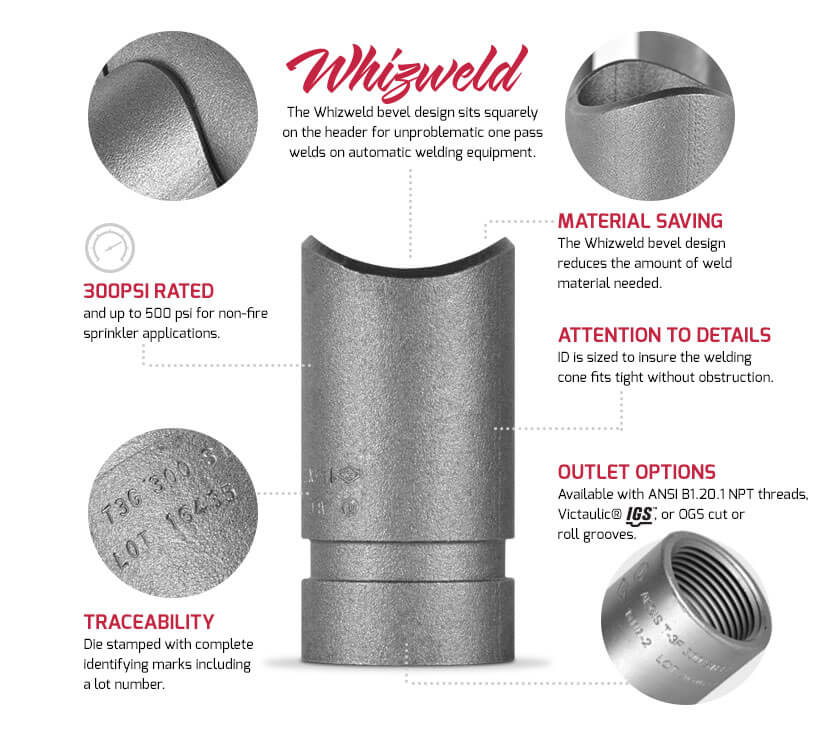

The AEGIS 90352560 Whizweld® BRANCHLET™ is an easy-to-weld outlet featuring a beveled design that allows it to sit squarely on the header for uncomplicated, one-pass welds with automatic welding equipment. Its inside diameter is sized to ensure the welding cone fits without obstruction. Designed to save installers valuable time and material, it is qualified to be welded on various proprietary thin wall flow pipe as well as industry standard pipe schedules 10 and 40.

• Reduces weld material needed due to the Whizweld bevel design.
• UL Listed in accordance to UL 213B with qualifying tests up to 1500psi.
• FM Approved in accordance to FM Class 1920 with qualifying tests up to 1200psi.

Product Highlights

The Whizweld® BRANCHLET™ welding outlet is precision manufactured from highly weldable carbon steel and cleaned and protected with a proprietary smokeless non-flash rust inhibitor for improved shelf life. Fully traceable with complete identifying marks including a lot number for full material traceability and overall quality assurance.

Product Information

Standard Information

• Brand: AEGIS
• Manufacturer Part Number: 90352560

Technical Specifications

• Outlet Nominal (A): 2.5"
• Header Nominal (B): 6"
• Outlet Length (C): 3"
• Inside Diameter (D): 2.469"
• Outside Diameter (E): 2.875"
• Wall Thickness SCH 40 (F): 0.203"
• Wall Thickness SCH 10 (F): N/A
• Weight SCH 40: 1.46 lbs
• Weight SCH 10: N/A
