Aegis 90352525 Whizweld® Branchlet™ Welding Outlet

Product Description

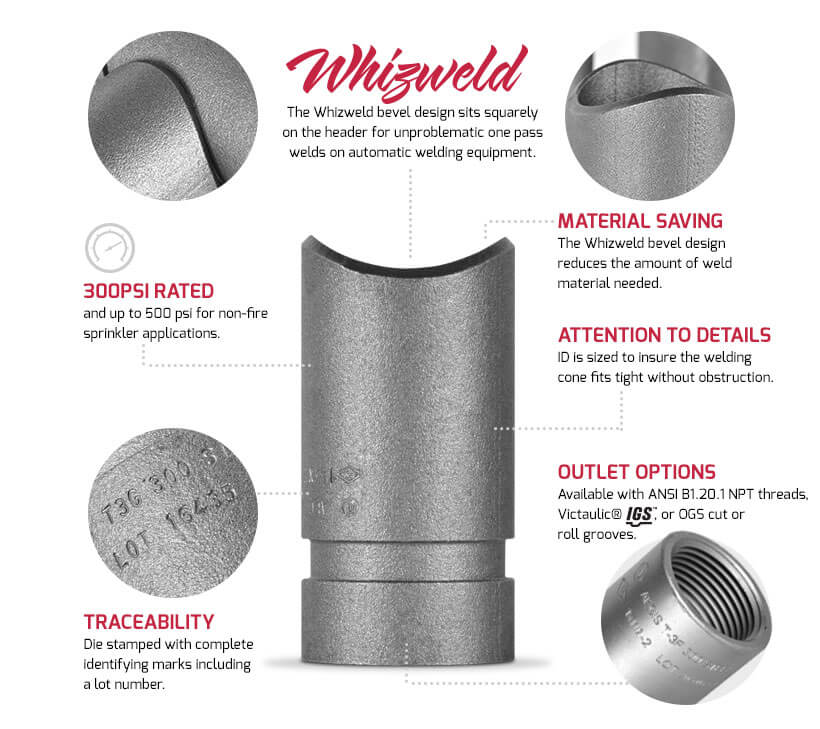

The AEGIS 90352525 Whizweld® Branchlet™ is an easy-to-weld outlet featuring a beveled design that allows it to sit squarely on the header for uncomplicated, one-pass welds with automatic welding equipment. Its inside diameter is sized to ensure the welding cone fits without obstruction. It is designed to save installers valuable time and material and is qualified to be welded on various proprietary thin wall flow pipe as well as industry standard pipe schedules 10 and 40.

• Material saving: The Whizweld bevel design reduces the amount of weld material needed.
• UL listed: Listed in accordance to UL 213B with qualifying tests up to 1500psi.
• FM approved: Approved in accordance to FM Class 1920 with qualifying tests up to 1200psi.

Product Highlights

This welding outlet is precision manufactured, cleaned, protected, and fully traceable. Outlets are available with ANSI B1.20.1 NPT threads, Victaulic® IGS™, or OGS cut or roll grooves.

Product Information

Standard Information

• Brand: AEGIS
• Manufacturer Part Number: 90352525
• Country of Origin: USA

Technical Specifications

• Material: Highly weldable carbon steel conforming to ASTM 1010, A-53, A135 or A795
• Threads: ANSI B1.20.1 NPT (Type 3F)
• Grooves: Victaulic® IGS™ (Type 3V), or OGS cut (Type 3G) or roll (Type 3RG)
