Aegis 90351530 Whizweld® Welding Outlet 1-1/2 X 3 - 4 in Grooved

Product Description

The AEGIS 90351530 Whizweld® Welding Outlet is designed for welding applications. This outlet features a grooved connection and is suitable for nominal sizes 1-1/2 X 3 - 4 IN. It has a 0.145 IN wall thickness, 1.61 IN inside diameter, 1.9 IN outside diameter and 3 IN length. It is cULus Listed and FM Approved and can handle a maximum pressure of 1500 PSI.

• Rated for 300 PSI and up to 500 PSI for non-fire sprinkler applications
• Qualified for welding on thin wall flow pipe and industry standard pipe SCH 10 and SCH 40
• Shot blasted or washed to reduce weld porosity and coated with a smokeless non-flash rust inhibitor

Product Highlights

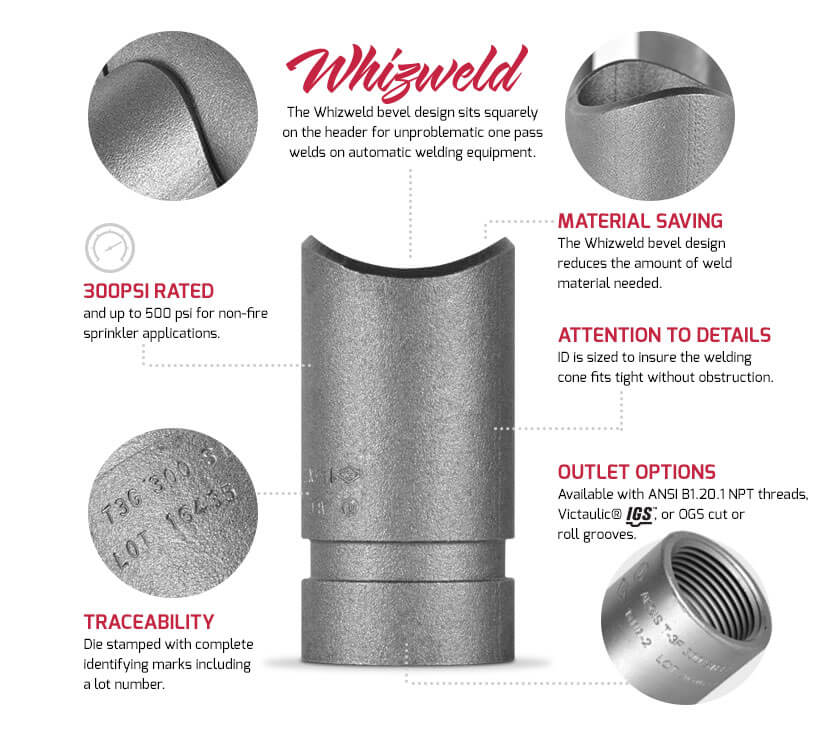

The Whizweld® bevel design reduces weld material needed. Precision manufactured from highly weldable carbon steel. Fully traceable with identifying marks for quality assurance.

Product Information

Standard Information

• Brand: AEGIS
• Manufacturer Part Number: 90351530

Technical Specifications

• Sub Brand: Whizweld®
• Item Name: Welding Outlet
• Nominal Size: 1-1/2 X 3 - 4 IN
• Connection Type: Grooved
• Wall Thickness: 0.145 IN
• Inside Diameter: 1.61 IN
• Outside Diameter: 1.9 IN
• Length: 3 IN
• Maximum Pressure: 1500 PSI
• Industry Standards: cULus Listed, FM Approved
• Outlet Nominal (A): 1.5"
• Header Nominal (B): 3" - 4"
• Outlet Length (C): 3"
• Inside Dia. SCH 40 (D): 1.610"
• Inside Dia. SCH 10 (D): 1.900"
• Wall Thickness SCH 40 (F): 0.145"
