Aegis 90351520 Whizweld® Branchlet™ Welding Outlet

Product Description

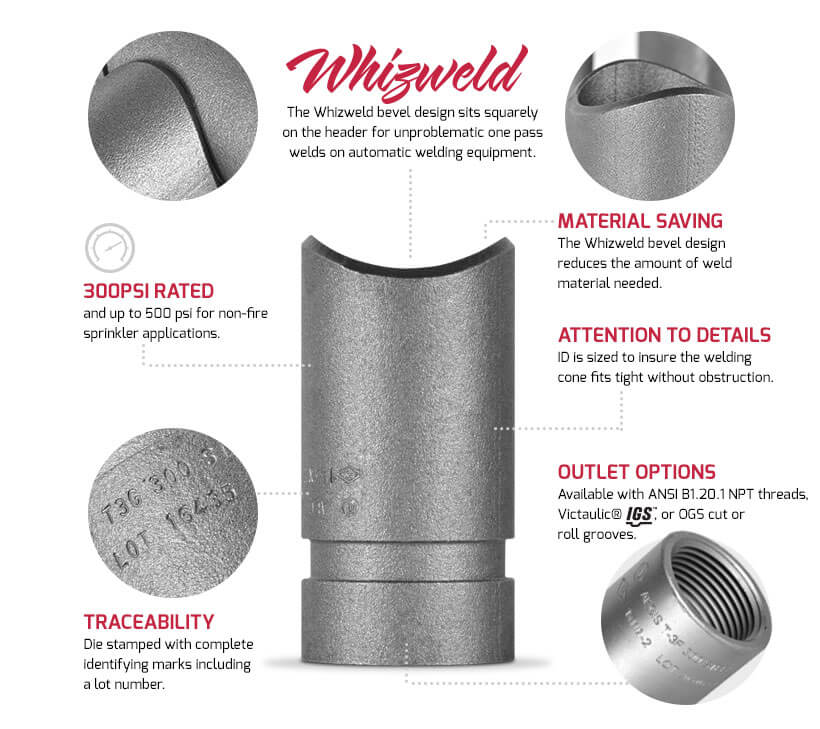

The AEGIS 90351520 Whizweld® Branchlet™ is an easy-to-weld outlet with a beveled design that allows it to sit squarely on the header for uncomplicated, one-pass welds with automatic welding equipment. Its inside diameter is sized to ensure the welding cone fits without obstruction. It is designed to save installers valuable time and material and is qualified to be welded on various proprietary thin wall flow pipe as well as industry standard pipe schedules 10 and 40.

• Reduces the amount of weld material needed due to the Whizweld bevel design.
• UL Listed in accordance to UL 213B with qualifying tests up to 1500psi.
• Approved in accordance to FM Class 1920 with qualifying tests up to 1200psi.

Product Highlights

Manufactured from highly weldable carbon steel, cleaned, protected, and fully traceable. Outlets are available with ANSI B1.20.1 NPT threads, Victaulic® IGS™, or OGS cut or roll grooves.

Product Information

Standard Information

• Brand: AEGIS
• Manufacturer Part Number: 90351520

Technical Specifications

• MPN: 90351520
• Outlet Nominal (A): 1.5"
• Header Nominal (B): 2"
• Outlet Length (C): 3"
• Inside Dia. SCH 40 (D): 1.610"
• Inside Dia. SCH 10 (D): 1.900"
• Wall Thickness SCH 40 (F): 0.145"
• Weight SCH 40: 0.62 lbs
