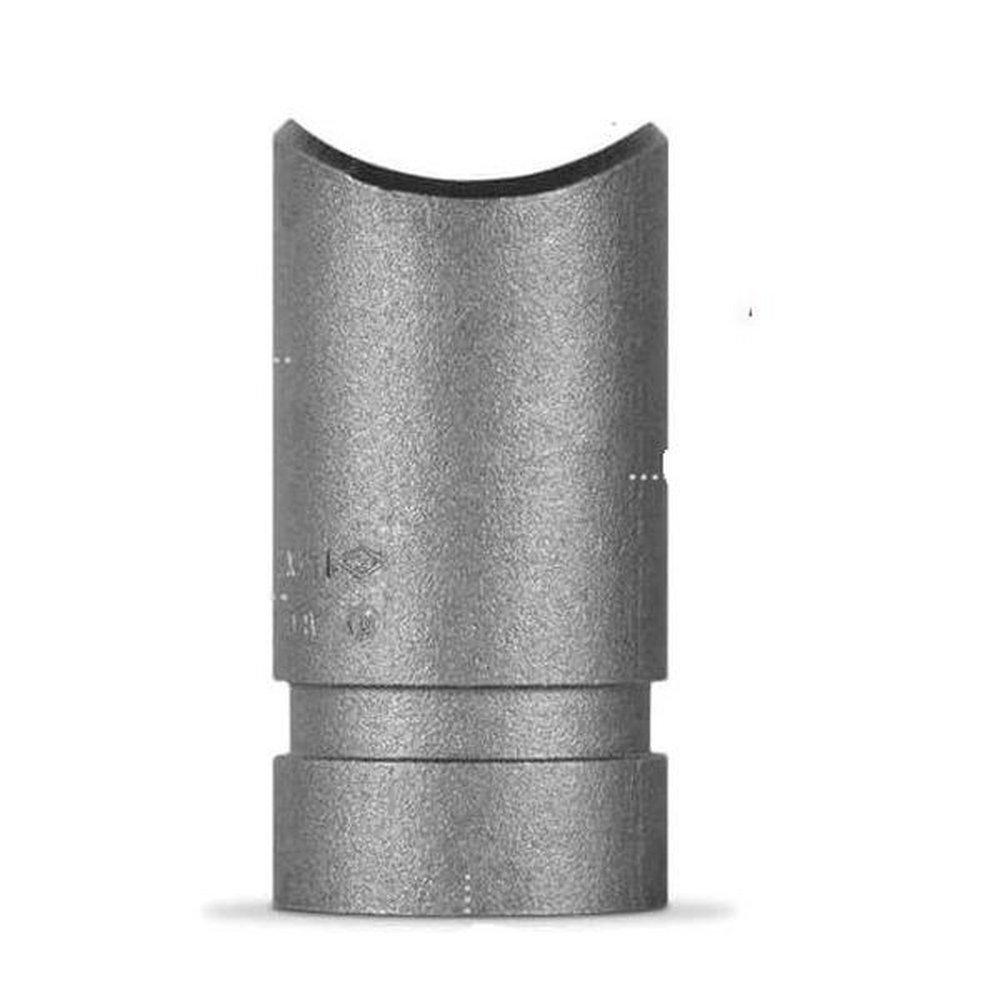

Aegis 90351225 1-1/4 in. x2-1/2 3g 300# s4 in. 0 gol

Product Description

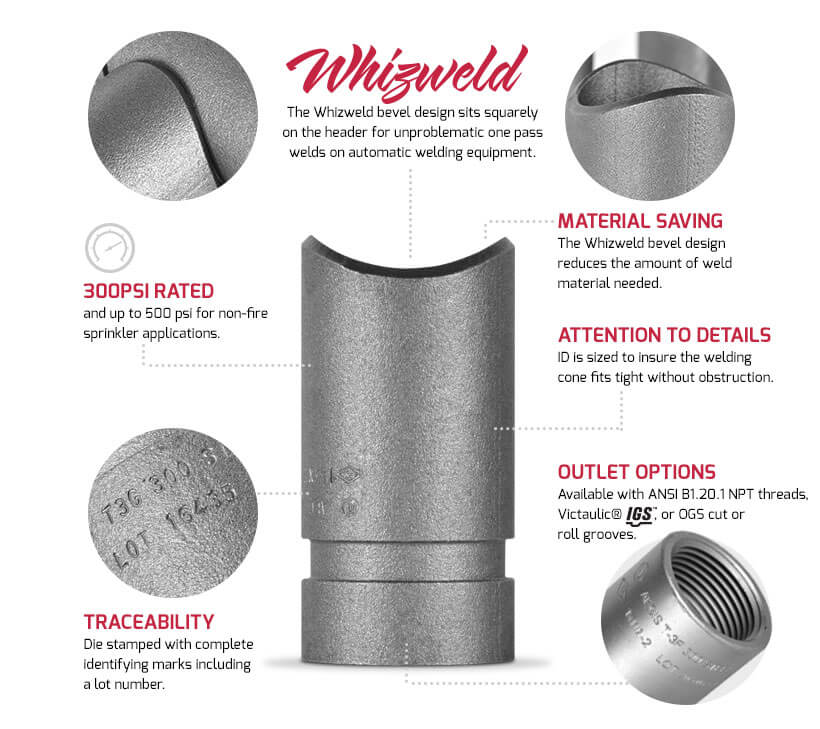

The AEGIS 90351225 Whizweld bevel design reduces the amount of weld material needed. It is UL listed in accordance to UL 213B with qualifying tests up to 1500 psi and FM approved in accordance to FM class 1920 with qualifying tests up to 1200 psi. Precision manufactured from highly weldable carbon steel conforming to ASTM 1010, A-53, A-135 or A-795.

• The Whizweld bevel design reduces the amount of weld material needed
• UL listed in accordance to UL 213B with qualifying tests up to 1500 psi
• FM approved in accordance to FM class 1920 with qualifying tests up to 1200 psi

Product Highlights

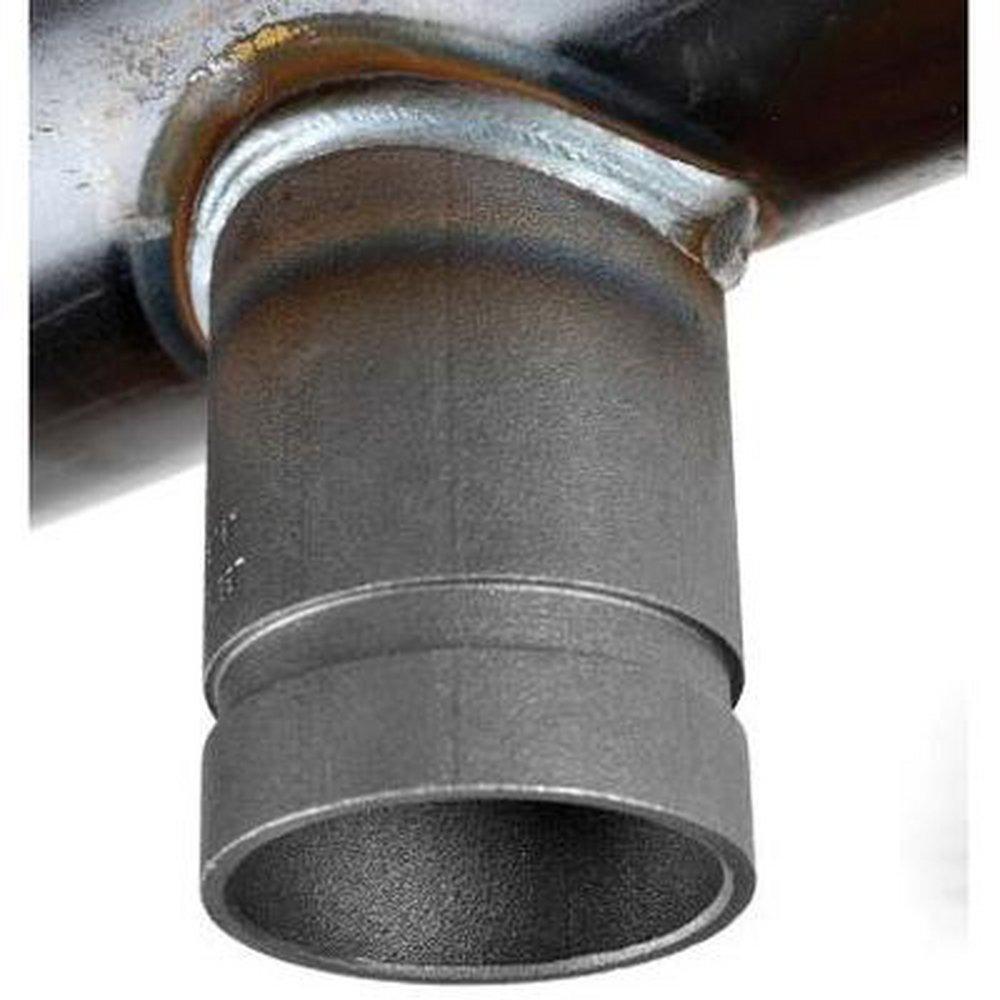

The contour, threaded and/or grooved ends are produced on automated precision equipment for superior dimensional accuracy and quality consistency. Shot blasted and/or washed to reduce weld porosity thereby improving job quality and lowering fabrication costs.

Product Information

Standard Information

• Brand: AEGIS
• Manufacturer Part Number: 90351225
• Country of Origin: Domestic

Technical Specifications

• Origin: Domestic
• Outlet Nominal (A): 1.25"
• Header Nominal (B): 2.5"
• Outlet Length (C): 3"
• Inside Dia. SCH 40 (D): 1.380"
• Inside Dia. SCH 10 (D): 1.660"
• Wall Thickness SCH 40 (F): 0.140"
• Weight SCH 40: 0.55 lbs
• Box QTY.: 80
