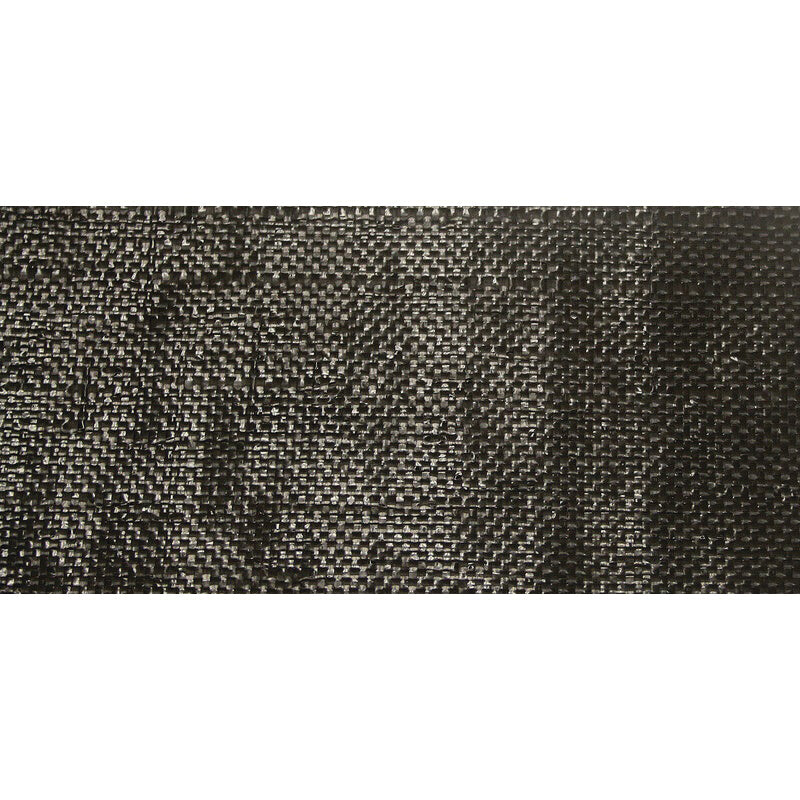

Advanced Drainage Systems 200wtm Geotextile Fabric 309 Ft

Product Description

The ADVANCED DRAINAGE SYSTEMS 200wtm is a woven geotextile fabric designed for erosion prevention, soil stabilization, and aggregate separation in demanding civil and site-work applications. Measuring 309 feet in length and 17.5 feet in width, this roll provides broad coverage for large-scale projects. With a tensile strength of 200 pounds, the woven construction resists displacement under load and maintains structural integrity across a range of soil and drainage conditions. It is installed by contractors, landscapers, civil crews, and utility professionals working on grading, drainage, and road-base projects.

This geotextile is suited for residential and commercial site applications including road and driveway subbase reinforcement, ditch lining, slope stabilization, and French drain underlayment. The fabric acts as a separation layer between native soil and aggregate fill, preventing intermixing over time and extending the service life of the installed system. Its large roll dimensions make it practical for linear runs such as drainage swales, access roads, and retention area perimeters where frequent splicing would otherwise be required.

Key Features

• Woven fabric construction delivers a tensile strength of 200 pounds for load-bearing and stabilization applications
• 309-foot roll length provides extended coverage with fewer seams on large job sites
• 17.5-foot width suits wide-area installations including road subbase and broad slope faces
• Functions as an aggregate-to-soil separation barrier to prevent migration and maintain drainage performance over time
• Suitable for erosion control in high-erosion-risk areas such as ditches, embankments, and disturbed slopes

Compatibility

Designed as a standard woven geotextile for use in site-work, drainage, and erosion-control applications where a separation or reinforcement layer is required between soil and aggregate.

Installation Notes

Geotextile fabric is typically installed by grading and site-work contractors following applicable local site-preparation and stormwater management codes. The subgrade should be graded and cleared of sharp debris before fabric placement to prevent puncture. Overlap seams by a minimum amount consistent with project specifications and secure edges to prevent wind displacement before aggregate cover is placed. Do not expose the fabric to prolonged UV without cover material, as unprotected geotextile can degrade over time.

Technical Specifications

• Length: 3708 inches (309 ft)
• Width: 210 inches (17.5 ft)
• Material: Woven Fabric
• Tensile Strength: 200 pounds

Standard Information

• Brand: ADVANCED DRAINAGE SYSTEMS
• Manufacturer Part Number: 200wtm
