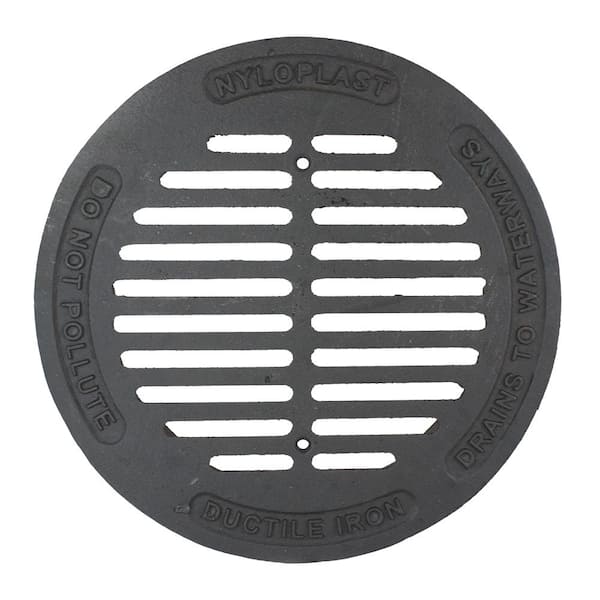

Advanced Drainage Systems 1201DI Nyloplast Ductile Iron Drop in Grate 12 in

Product Description

The ADVANCED DRAINAGE SYSTEMS 1201DI Nyloplast grate enhances the drainage capacity of pipes. Constructed from premium quality material for lasting durability. Its simple design allows for hassle free installation and maintenance. This drop-in grate has a diameter of 14.95 inches and a thickness of 1-1/2 inches, suitable for a 12 inch pipe.

• Enhances the drainage capacity of pipes
• Made from premium quality material for lasting durability
• Simple design allows for hassle free installation and maintenance

Product Highlights

Durable ductile iron grate designed for easy drop-in installation. Ideal for areas with heavy foot or light vehicular traffic. ADA compliant and meets ASTM A536 Grade 70-50-05 standards.

Product Information

Standard Information

• Brand: ADVANCED DRAINAGE SYSTEMS
• Manufacturer Part Number: 1201DI

Technical Specifications

• Max. Compatible Pipe Size (In.): 12"
• Pipe Size: 12 in
• Surface Area: 39.75 sq-in
• Item Name: Drop-In Grate
• Sub Brand: Nyloplast®
• Type: Light-Duty
• Grate Material: Ductile Iron
• Shape: Round
• Thickness: 1-1/2 inch
• Diameter: 14.95 inch
• For Use With: N-12 Dual Wall Pipe, Sewer SDR 35 Pipe and IPS SCH 40 Pipe
• Applications: For use in Areas with Heavy Foot Traffic or Light Vehicular Traffic (Bikes, Golf Carts), Where a Sturdier Grate is Needed
• Standards/Approvals: ADA Compliant, ASTM A536 Grade 70-50-05
