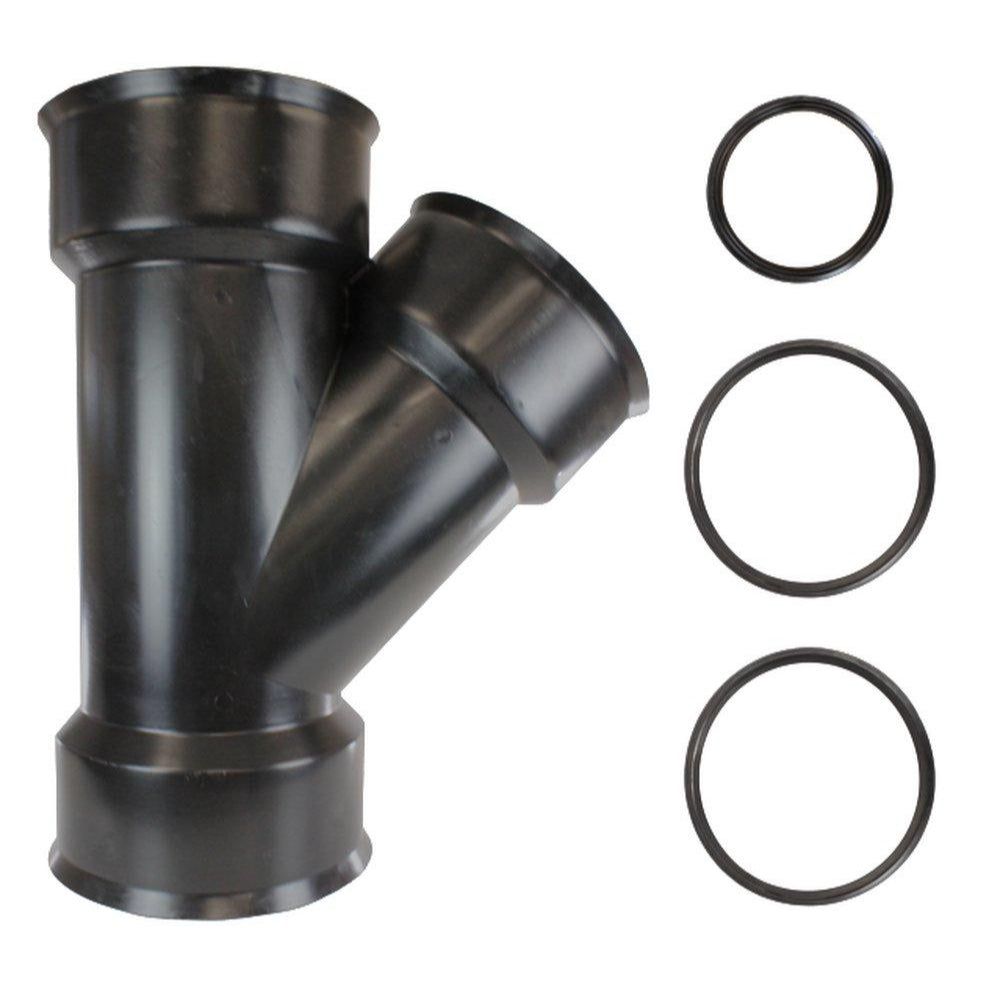

Advanced Drainage Systems 0882WT 8 in Hdpe Watertight Wye

Product Description

The ADVANCED DRAINAGE SYSTEMS 0882WT is an 8-inch HDPE watertight wye fitting designed for use with ADS N-12 corrugated drainage pipe. This fitting creates a leak-resistant branch connection in subsurface stormwater and drainage systems, allowing a lateral line to tie into a mainline at a wye angle. The watertight designation indicates a gasketed or sealed joint construction, which meets stricter infiltration and exfiltration requirements compared to standard soil-tight fittings. Licensed plumbers, civil contractors, and drainage specialists install this fitting in applications where groundwater intrusion or outflow must be controlled.

This wye fitting is suited for residential, commercial, and municipal drainage installations where N-12 dual-wall HDPE corrugated pipe is specified. Common applications include storm sewer laterals, subsurface drainage networks, retention and detention system outfalls, and site utility work where watertight performance is required by local code or project specification. The 8-inch diameter accommodates high-volume flow applications typical of larger site drainage designs.

Key Features

• Watertight joint construction controls infiltration and exfiltration in below-grade drainage systems
• Compatible with ADS N-12 dual-wall corrugated HDPE pipe in 8-inch diameter
• HDPE material resists corrosion, root intrusion, and chemical degradation common in subsurface environments
• Wye geometry allows smooth-flow lateral branch connections to mainline runs
• Lightweight construction simplifies handling and positioning during installation

Compatibility

Designed for use with ADS N-12 corrugated HDPE drainage pipe in 8-inch diameter. Watertight fitting intended for systems requiring controlled-joint performance.

Installation Notes

Installation is typically performed by licensed plumbers or civil drainage contractors working to local stormwater and grading codes. Power down or isolate any connected pump systems before making connections in active drainage networks. Ensure the pipe ends are clean and free of debris before seating the fitting to maintain the watertight gasket seal. Follow the pipe manufacturer assembly guidelines for gasket lubrication and joint pull-back to achieve proper seating depth.

Technical Specifications

• Pipe Size: 8 inches
• Fitting Type: Wye
• Joint Type: Watertight
• Material: HDPE
• Compatible Pipe System: ADS N-12
• Order Increment: 1

Standard Information

• Brand: ADVANCED DRAINAGE SYSTEMS
• Manufacturer Part Number: 0882WT
