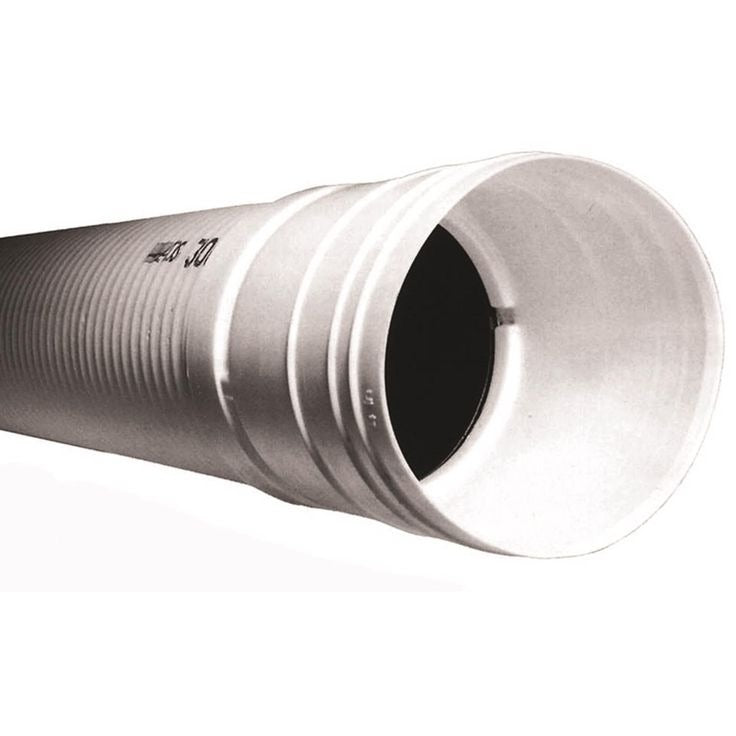

Advanced Drainage Systems 04550010 Triple-wall Pipe (4 in x 10 ft)

Product Description

Advanced Drainage Systems 04550010 is a 3000-series triple-wall high-density polyethylene (HDPE) sewer and drain pipe intended for agricultural and residential drainage and sewer applications. The triple-bonded construction pairs smooth inner and outer walls with a corrugated structural core to deliver stiffness comparable to PVC. The pipe uses a bell x spigot connection, has a nominal 4 in diameter, 10 ft length, outside diameter ~4.215 in, and wall thickness 0.215 in. Operating range -50 to 200 F; maximum working pressure 140 psi.

• Triple-bonded HDPE triple-wall construction with corrugated structural core and smooth inner and outer walls
• Nominal 4 in diameter, 10 ft length; outside diameter approximately 4.215 in; wall thickness 0.215 in
• Bell x spigot connection; designed for agricultural and residential drain and sewer use; operating range -50 to 200 F; maximum working pressure 140 psi

Product Highlights

3000-series triple-wall HDPE drain and sewer pipe with corrugated core and bell x spigot connection, 4 in x 10 ft.

Product Information

Standard Information

• Brand: ADVANCED DRAINAGE SYSTEMS
• Manufacturer Part Number: 04550010
• Country of Origin: US
