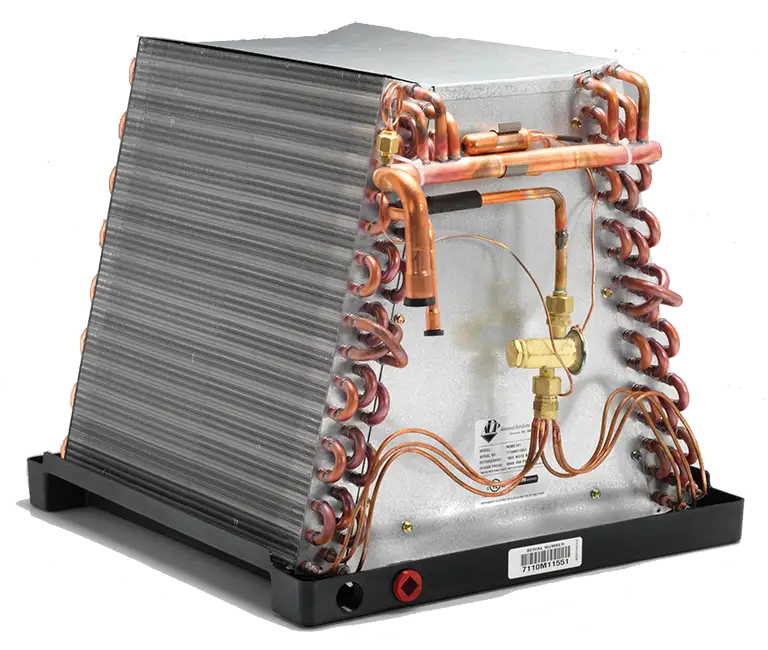

Advanced Distributor Products tac59c 5 Ton Cased N-coil 59000 Btu/h

Product Description

The ADVANCED DISTRIBUTOR PRODUCTS tac59c is a 5-ton cased N-coil evaporator coil rated at 59,000 BTU/h. Built with an aluminum coil construction, it supports both piston and TXV metering devices and is compatible with R-22 and R-410A refrigerants. The multi-position configuration allows installation in upflow, downflow, or horizontal applications, giving installing technicians flexibility across a wide range of residential and light commercial split-system setups. This coil is designed for installation by licensed HVAC contractors as part of a central air conditioning or heat pump system.

The tac59c is suited for residential and light commercial split-system air conditioning applications requiring a 5-ton evaporator coil. Its multi-position design makes it adaptable to a variety of air handler and furnace configurations. The 22-inch width accommodates standard cabinet openings found in many residential installations. The dual refrigerant compatibility with R-22 and R-410A adds flexibility for retrofit and new-construction scenarios where refrigerant type may vary by system age or regional regulation.

Key Features

• 5-ton capacity rated at 59,000 BTU/h for mid-to-large residential and light commercial cooling loads
• Cased N-coil configuration for straightforward installation and structural rigidity
• Multi-position design supports upflow, downflow, and horizontal installations
• Compatible with both piston and TXV metering devices for flexible system design
• Accepts R-22 and R-410A refrigerants, supporting retrofit and new-installation applications
• Aluminum coil construction for corrosion resistance and efficient heat transfer

Compatibility

Designed as an OEM-style replacement or new-installation evaporator coil for 5-ton residential and light commercial split-system air conditioning and heat pump systems using R-22 or R-410A refrigerant.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with local mechanical codes and manufacturer guidelines. The refrigerant system must be recovered and the system de-energized before removing or installing the coil. Verify that the selected metering device type matches the condensing unit requirements before connecting refrigerant lines. Leak-test all connections after installation and confirm proper refrigerant charge before returning the system to service.

Technical Specifications

• BTU Rating: 59,000 BTU/h
• Tonnage: 5.0 Ton
• Coil Type: Cased N-Coil
• Configuration: Multi-Position
• Metering Device: Piston / TXV
• Refrigerant Type: R-22, R-410A
• Material: Aluminum
• Width: 22 inches

Standard Information

• Brand: ADVANCED DISTRIBUTOR PRODUCTS
• Manufacturer Part Number: tac59c
