Advanced Distributor Products tac47d 3.5 Ton N-coil R-410A

Product Description

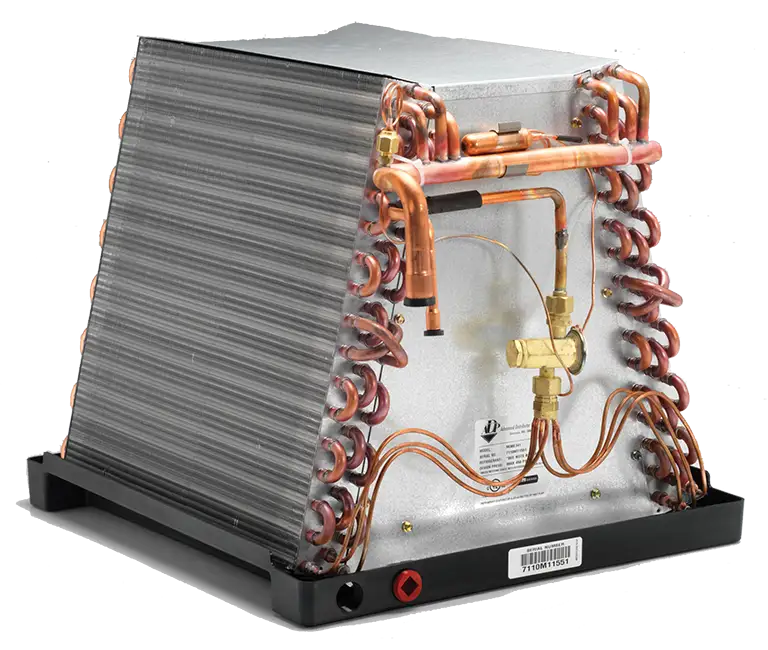

The ADVANCED DISTRIBUTOR PRODUCTS tac47d is a cased N-coil evaporator coil rated at 47,000 BTU/h and designed for residential and light commercial split-system air conditioning applications. Built with an aluminum coil construction, it operates on R-410A refrigerant and uses a TXV metering device for efficient refrigerant flow control. At 3.5 tons of cooling capacity, it is sized for mid-range residential systems. The multi-position configuration allows installation in upflow, downflow, or horizontal orientations, giving installing HVAC technicians flexibility in tight mechanical rooms or closets.

The tac47d is suited for residential split-system installations where a cased evaporator coil is required above or beside a gas furnace or air handler. Its 21.0-inch width makes it compatible with standard 21-inch-wide air handler and furnace cabinets. Multi-position capability supports a range of equipment configurations without requiring a separate coil model for each orientation. HVAC contractors will typically pair this coil with a matched outdoor condensing unit sized for R-410A service.

Key Features

• 47,000 BTU/h cooling capacity for mid-range residential systems
• Cased N-Coil design ready for direct installation without a separate coil cabinet
• TXV metering device provides precise refrigerant flow control across varying load conditions
• R-410A refrigerant compatible, meeting current HFC refrigerant standards
• Multi-position configuration supports upflow, downflow, and horizontal installs
• Aluminum coil construction for corrosion resistance and heat transfer efficiency

Compatibility

Designed as an OEM-style replacement or new-installation evaporator coil for residential split-system air conditioning and heat pump applications using R-410A refrigerant with a 21.0-inch wide air handler or furnace cabinet.

Installation Notes

Installation should be performed by a licensed HVAC technician holding an EPA Section 608 refrigerant handling certification. Always disconnect and lock out electrical power to the air handler or furnace before opening the coil cabinet. The refrigerant system must be properly evacuated and leak-checked before charging. Verify the TXV is matched to the outdoor unit per manufacturer guidelines before commissioning the system.

Technical Specifications

• BTU Rating: 47,000 BTU/h
• Tonnage: 3.5 Ton
• Coil Type: Cased N-Coil
• Configuration: Multi-Position
• Metering Device: TXV
• Refrigerant Type: R-410A
• Material: Aluminum
• Width: 21.0 inches

Standard Information

• Brand: ADVANCED DISTRIBUTOR PRODUCTS
• Manufacturer Part Number: tac47d
