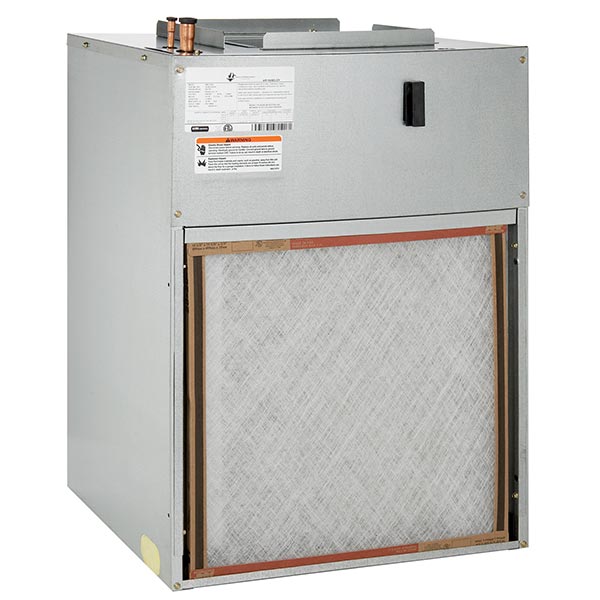

Advanced Distributor Products SM713010 S Series 2.5 Ton Compact Wall Mount Cased Front Return Air Handler 10kW

Product Description

The ADVANCED DISTRIBUTOR PRODUCTS SM713010 S Series 2.5 Ton Compact Wall Mount Cased Front Return Air Handler features 10kW electric heat. Constructed from galvanized steel, it utilizes R-410A refrigerant and a piston metering device. This unit operates on a 208/240 V 60 Hz, 1 ph power source and delivers a flow rate of 1000 cfm.

• Features lightweight and low height design
• Equipped with factory installed electric heat
• Includes a slide-in air filter

Product Highlights

Compact wall mount air handler with 10kW electric heat, ideal for heating and cooling in residential or commercial applications.

Product Information

Standard Information

• Brand: ADVANCED DISTRIBUTOR PRODUCTS
• Manufacturer Part Number: SM713010

Technical Specifications

• Control Type: 3-Speed
• Filter Size: 20 x 20 in
• Flow Rate: 1000 cfm
• Heating Capacity: 30000 Btu/hr
• Includes: Slide-In Air Filter
• Line Size (Liquid): 3/8 in
• Line Size (Suction): 3/4 in
• Material: Galvanized Steel
• Metering Device: Piston
• Motor Type: Permanent Split Capacitor
• Nominal Capacity: 30 MBtu/hr
• Power Source: 208/240 V 60 Hz, 1 ph
• Refrigerant Type: R-410A
• Series: S Series
• Type: Compact Wall Mount Closed
