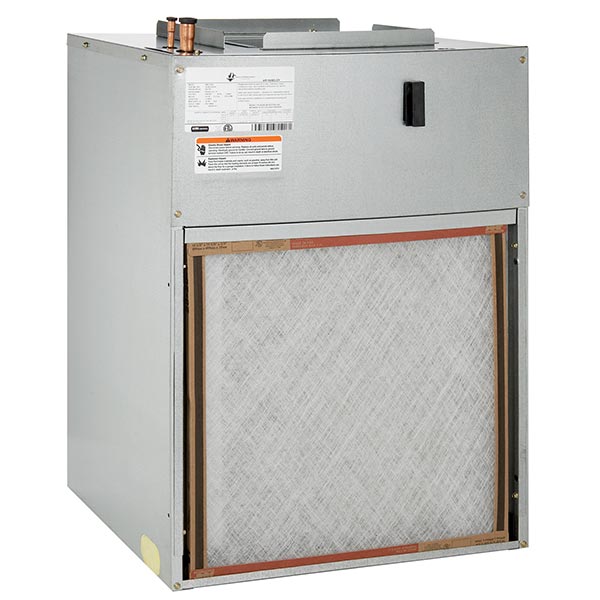

Advanced Distributor Products SM312405 S Series 1.5-2.0 Ton Compact Wall Mount Cased Front Return Air Handler, 5kW

Product Description

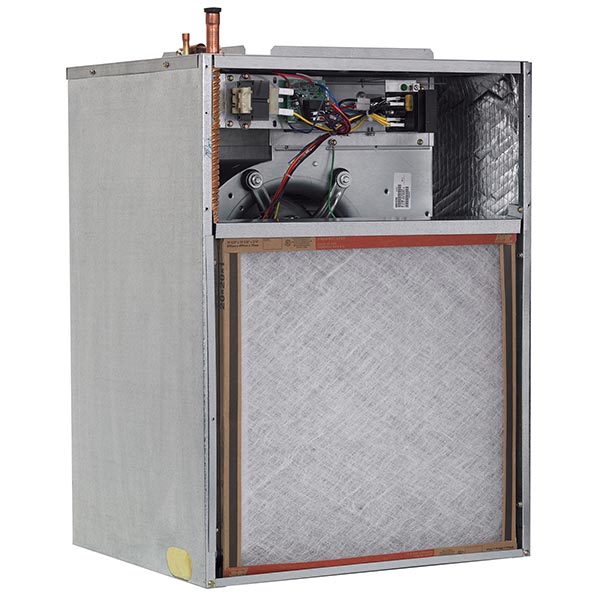

The Advanced Distributor Products SM312405 is a compact wall mount air handler designed for efficient heating and cooling. This unit has a nominal capacity of twenty-four MBtu per hour and is suitable for residential and commercial use. It features top refrigerant connections, flexible copper tubing, and a universal control board.

• Light weight design
• Factory installed electric heat
• Piston metering device for R-410A

Product Highlights

Ideal for installation in limited spaces, the SM312405 ensures effective airflow with a flow rate of 800 cubic feet per minute. It includes a slide-in air filter for easy maintenance.

Product Information

Standard Information

• Brand: Advanced Distributor Products
• Type: Compact Wall Mount Closed

Technical Specifications

• Control Type: 3-Speed
• Filter Size: 20 x 20 inches
• Heating Capacity: 24000 Btu/hr
• Flow Rate: 800 cfm
• Line Size (Liquid): 3/8 inches
• Line Size (Suction): 3/4 inches
• Material: Galvanized Steel
• Metering Device: Piston
• Motor Type: Permanent Split Capacitor
• Nominal Capacity: 24 MBtu/hr
• Power Source: 208/240 V, 60 Hz, 1 phase
• Refrigerant Type: R-410A
• Series: S Series
• Warranty: Limited 10 years
