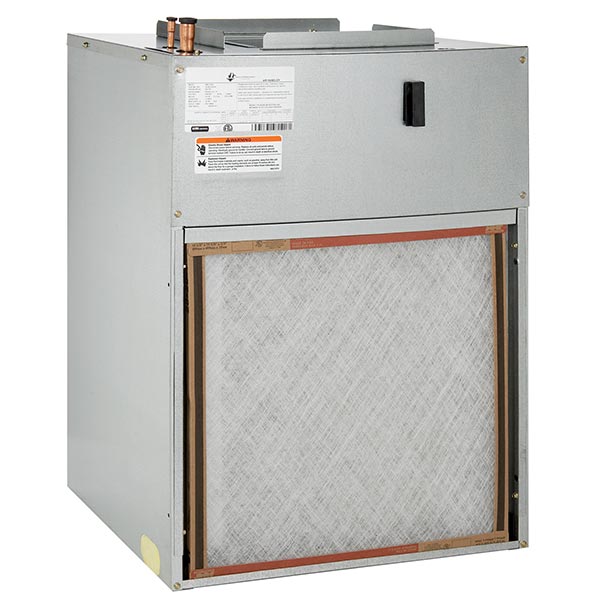

Advanced Distributor Products SK793010 S Series 2.5 Ton Compact Wall Mount Cased Front Return Air Handler, 10kW, Copper Slab

Product Description

The Advanced Distributor Products SK793010 is a compact wall mount cased front return air handler with a capacity of two point five tons and a ten kilowatt electric heat option. This unit features top refrigerant connections for efficient operation and can be used in various HVAC applications. Its lightweight design and low height make installation simple.

• 10 kW electric heat included
• R-410A refrigerant compatible
• Universal control board for easy setup

Product Highlights

This air handler is designed for residential or commercial use, providing reliable air conditioning and heating.

Product Information

Standard Information

• Product Name: ADP SK793010 S Series 2.5 Ton Compact
• Brand: Advanced Distributor Products

Technical Specifications

• Control Type: 3-Speed
• Filter Size: 20 x 20 in
• Flow Rate: 1000 cfm
• Heating Capacity: 30000 Btu/hr
• Includes: Slide-In Air Filter
• Line Size (Liquid): 3/8 in
• Line Size (Suction): 3/4 in
• Material: Galvanized Steel
• Metering Device: Non-Bleed HP TXV
• Motor Type: Permanent Split Capacitor
• Nominal Capacity: 30 MBtu/hr
• Power Source: 208/240 V 60 Hz, 1 ph
• Refrigerant Type: R-410A
• Series: S Series
• Slab Number: K7
• Type: Compact Wall Mount Closed
• Warranty: Limited 10 yr
