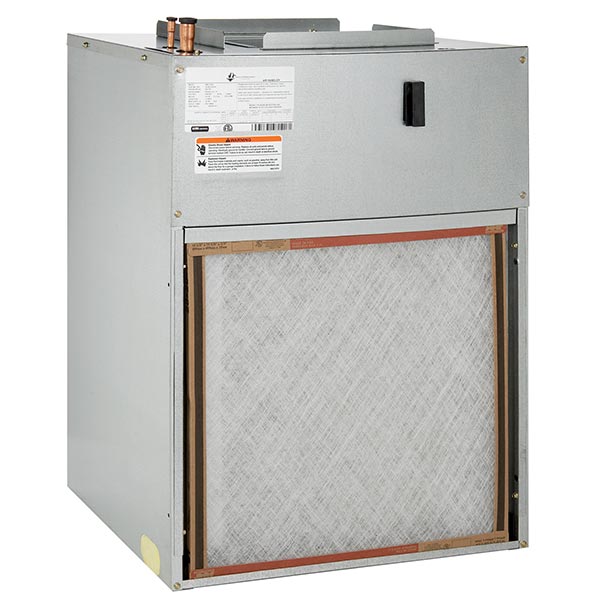

Advanced Distributor Products SK793007 S Series 2.0 Ton Compact Wall Mount Cased Front Return Air Handler, 7.5kW

Product Description

The Advanced Distributor Products SK793007 is a S Series 2.0 ton compact wall mount cased front return air handler. This model combines efficiency and functionality, suitable for various HVAC applications. It is designed to fit in tight spaces, making it ideal for residential and commercial installations.

• Light weight for easy installation.
• Top refrigerant connections to streamline service.
• Factory installed electric heat option.

Product Highlights

This air handler is designed for wall mounting, with a limited warranty period of ten years. It is equipped with a universal control board and is compatible with R-410A refrigerant.

Product Information

Standard Information

• Brand: Advanced Distributor Products
• Type: Compact Wall Mount Closed

Technical Specifications

• Control Type: 3-Speed
• Filter Size: 20 x 20 inches
• Flow Rate: 800 cfm
• Heating Capacity: 24000 Btu/hr
• Includes: Slide-In Air Filter
• Line Size (Liquid): 3/8 inches
• Line Size (Suction): 3/4 inches
• Material: Galvanized Steel
• Metering Device: Non-Bleed HP TXV
• Motor Type: Permanent Split Capacitor
• Nominal Capacity: 24 MBtu/hr
• Power Source: 208/240 V 60 Hz, 1 ph
• Refrigerant Type: R-410A
• Series: S Series
• Slab Number: K7
• Warranty: Limited 10 years
