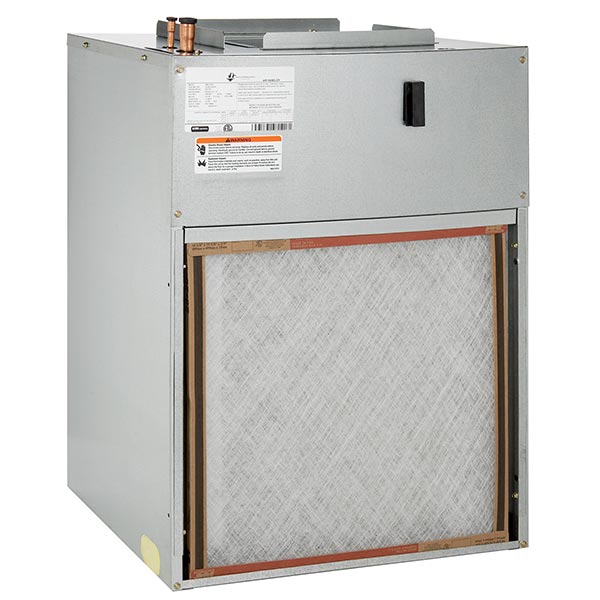

Advanced Distributor Products SK792407 ADP S Series 1.5 Ton Compact Wall Mount Cased Front Return Air Handler 7.5kW

Product Description

The Advanced Distributor Products SK792407 is a compact wall mount air handler designed for efficient heating and cooling. This unit is equipped with a 7.5 kW electric heat element and features a copper slab for optimal heat exchange.

• Lightweight and low-profile design
• Top refrigerant connections for easy installation
• Compatible with R-410A refrigerant

Product Highlights

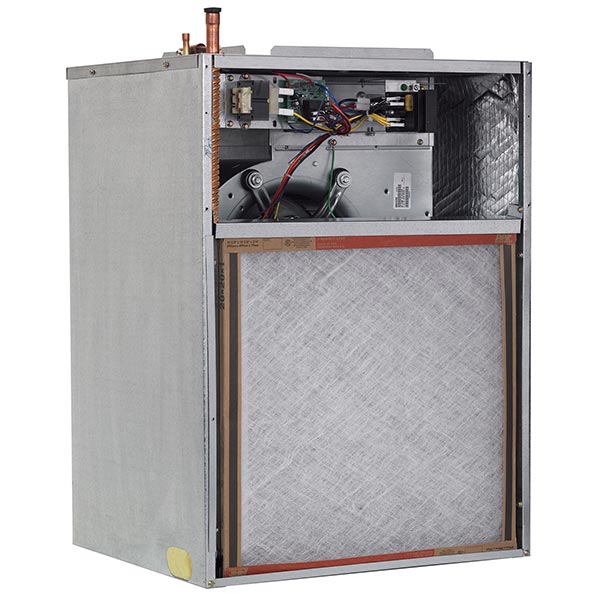

This air handler includes features such as a universal control board and factory installed electric heat. It supports both factory and field-installed TXVs, enhancing its adaptability. The sturdy galvanized steel construction ensures long-lasting performance.

Product Information

Standard Information

• Brand: Advanced Distributor Products
• MPN: SK792407

Technical Specifications

• Control Type: 3-Speed
• Filter Size: 20 x 20 in
• Flow Rate: 600 cfm
• Heating Capacity: 18000 Btu/hr
• Includes: Slide-In Air Filter
• Line Size (Liquid): 3/8 in
• Line Size (Suction): 3/4 in
• Material: Galvanized Steel
• Metering Device: Non-Bleed HP TXV
• Motor Type: Permanent Split Capacitor
• Nominal Capacity: 18 MBtu/hr
• Power Source: 208/240 V 60 Hz, 1 ph
• Refrigerant Type: R-410A
• Series: S Series
• Slab Number: K7
• Type: Compact Wall Mount Closed
• Warranty: Limited 10 yr
