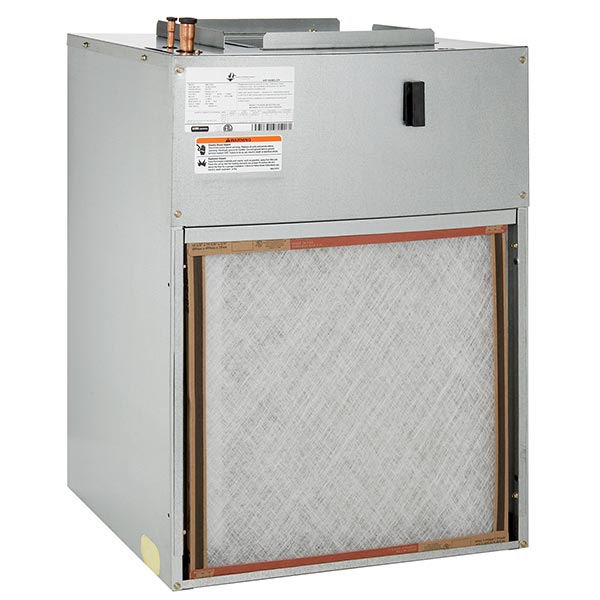

Advanced Distributor Products SK791805 ADP S Series 1.5-Ton Compact Wall Mount Cased Front Return Air Handler With 5kW Electric Heat

Product Description

The Advanced Distributor Products SK791805 is a compact wall mount air handler designed for efficient heating and cooling. This model features a 1.5-ton capacity, integrated electric heat, and copper coils, making it suitable for various applications in residential and light commercial settings.

• Integrated filter frame with slide-in design
• No tools required for change out
• Easy installation over water heater, wall mounted, or recessed in wall

Product Highlights

This air handler combines convenience and performance with a focus on ease of installation and maintenance.

Product Information

Standard Information

• Brand: Advanced Distributor Products
• Part Number: SK791805

Technical Specifications

• Air Filter Size: 20 x 20 in
• Coils: Copper
• Dimensions: 30 in H x 18-3/4 in D x 22 in W
• Frequency: 60 Hz
• Heat Capacity: 5 kW
• Line Connection, Liquid: 3/8 in
• Line Connection, Suction: 3/4 in
• Motor: 1/4 hp 3-Speed PSC
• Phase: 1
• Refrigerant: R-410A
• Unit Size: 18
• Voltage: 208/240 V
• Warranty: 5 yr
