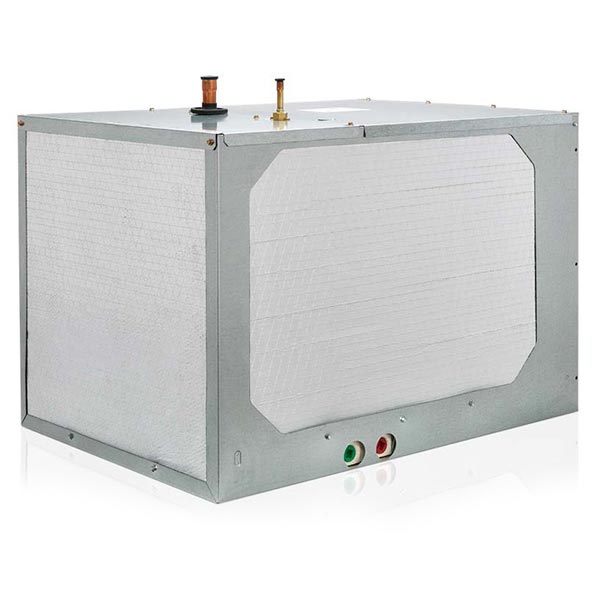

Advanced Distributor Products PL60H245P77940 PL Series 5.0 Ton Horizontal Premier Indoor Plenum Evaporator Coil With TXV

Product Description

The Advanced Distributor Products PL60H245P77940 is a 5.0 ton horizontal premier indoor plenum evaporator coil designed for efficient heating and cooling systems. This model features a durable one-piece cabinet for enhanced strength. It facilitates quick installation and maintenance thanks to its top panel, which can be accessed with just four screws.

• One-piece cabinet construction
• Independent certification of less than 2% air leakage
• Includes furnace mounting bracket for single person installation

Product Highlights

This evaporator coil integrates advanced features that support effective airflow and energy efficiency, critical for HVAC installations.

Product Information

Standard Information

• Brand: Advanced Distributor Products
• MPN: PL60H245P77940

Technical Specifications

• Access Port: TXV
• Cabinet Length: 40 in
• Coil Height: 24.5 in
• Coil Type: Horizontal
• Condensate Drains: 3/4 in FTP
• Finish: Galvanized
• Line Size (Liquid): 3/8 in ODF
• Line Size (Suction): 7/8 in ODF
• Metering Device: Non-Bleed HP TXV
• Nominal BTUH: 60,000 Btu/hr
• Pressure Rating: 500 psi
• Refrigerant: R-22 or R-410A
• Slab Number: P77
• Type: Indoor Plenum
• Warranty: 5 yr Standard / 10 yr Available
