Advanced Distributor Products m36e241s Mobile Home Coil 18 in

Product Description

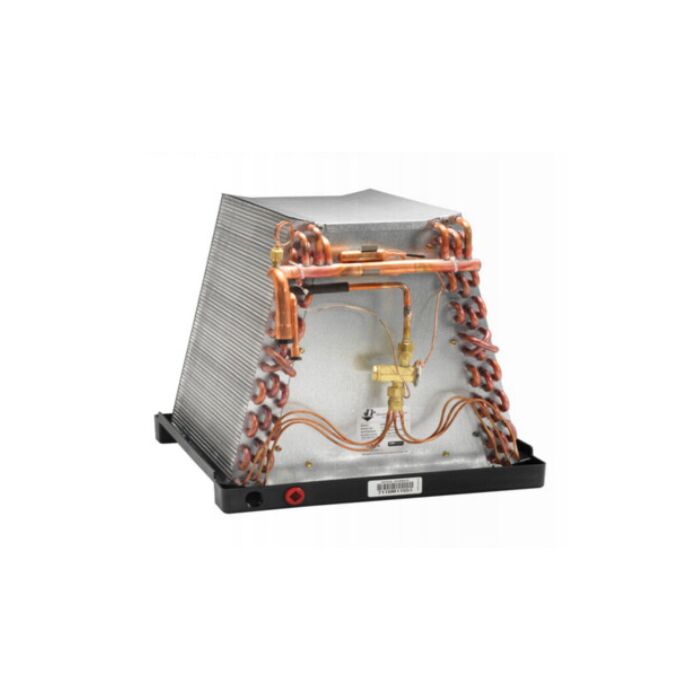

The ADVANCED DISTRIBUTOR PRODUCTS m36e241s is an un-cased downflow evaporator coil designed specifically for manufactured and mobile home HVAC applications. Compatible with both R-410A refrigerant and systems using A2L refrigerants, the coil ships pre-charged with dry air for added flexibility during installation. The piston metering device provides reliable refrigerant flow control without additional components. At 18 inches wide with a left-hand orientation, this coil fits into the tight mechanical spaces common in manufactured housing units. Licensed HVAC technicians handling residential replacement or new-installation work in manufactured homes will find the down-turned headers and filter-friendly top plate designed with practical field work in mind.

The m36e241s is rated for 1.5 to 3.5 ton systems and is intended for downflow configurations in manufactured and mobile home electric furnace setups. It is noted as compatible with the mFurnace manufactured housing electric furnace line. The left-hand orientation determines plumbing and line-set routing, so confirm orientation against the existing or planned equipment layout before ordering. This coil suits residential manufactured housing environments where space constraints and dual-refrigerant readiness are key installation considerations.

Key Features

• Designed for manufactured and mobile home HVAC applications
• Un-cased downflow configuration with left-hand orientation
• Dry-air pre-charge supports both A1 and A2L refrigerant applications
• Piston metering device included for straightforward refrigerant flow control
• Down-turned headers sized for easier line brazing in the field
• Filter-friendly top plate design simplifies maintenance access

Compatibility

Noted as compatible with the mFurnace manufactured housing electric furnace. Designed as an OEM-style downflow evaporator coil for left-hand, un-cased installations in manufactured and mobile home HVAC systems ranging from 1.5 to 3.5 tons.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with applicable local codes and manufacturer guidelines. Disconnect and lock out all electrical power to the system before beginning coil removal or installation. The down-turned headers are designed to facilitate line brazing; follow proper refrigerant handling procedures as required by EPA Section 608 regulations. Verify left-hand orientation and confirm refrigerant compatibility with the connected condensing unit before completing the installation.

Technical Specifications

• Type: Un-Cased Coil
• Configuration: Downflow
• Orientation: Left Hand
• Capacity Range: 1.5 to 3.5 Ton
• Refrigerant: R-410A
• Metering Device: Piston
• Width: 18 inches
• Application: Manufactured and Mobile Home

Standard Information

• Brand: ADVANCED DISTRIBUTOR PRODUCTS
• Manufacturer Part Number: m36e241s
