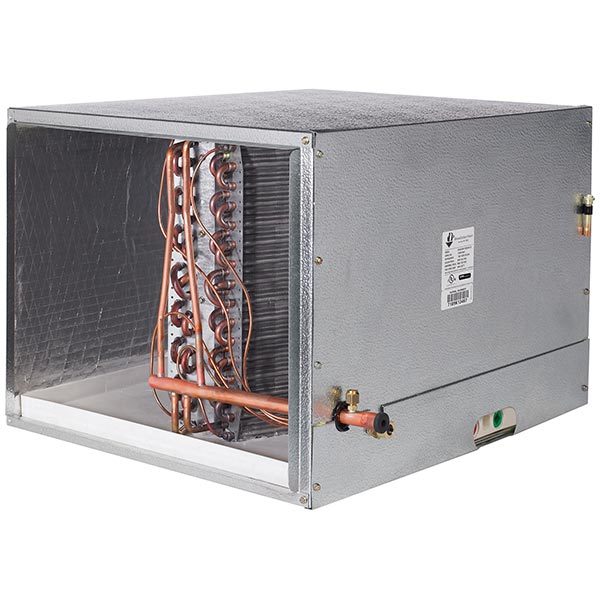

Advanced Distributor Products AD17960E210B2647AP HD Series 4.0-5.0 Ton Premier Horizontal Evaporator Coil With TXV

Product Description

The Advanced Distributor Products AD17960E210B2647AP is an HD Series evaporator coil designed for 4.0 to 5.0 ton capacity systems. This horizontal evaporator coil features a TXV, enhancing its functionality in cooling applications.

• Improved air quality
• Non-captive refrigerant lines
• Dual drain connections on each side

Product Highlights

This product is suitable for HVAC systems, especially in crawl spaces, and supports a variety of installations.

Product Information

Standard Information

• Brand: Advanced Distributor Products
• Part Number: L2648

Technical Specifications

• Air Flow Type: Horizontal Right/Left
• Cabinet Color: Grey
• Cabinet Height: 21.0 inches
• Cabinet Length: 26.5 inches
• Cabinet Width: 21.50 inches
• Country of Origin: US
• Duct Flange: 3/4 inch
• Enclosure Type: Cased
• Line Size (Liquid): 3/8 inch
• Line Size (Suction): 7/8 inch
• Metering Device: Non-Bleed HP TXV
• Nominal Capacity: 4.0-5.0 Ton
• Piston Size: TXV Access Port
• Refrigerant Connection: Side of Cabinet
• Refrigerant Type: R-410A
• Series: Healthy Solutions HD Series
• Slab Number: D17
• Tubing Material: Copper
• Type: Premier
• Warranty: Limited 10 years
