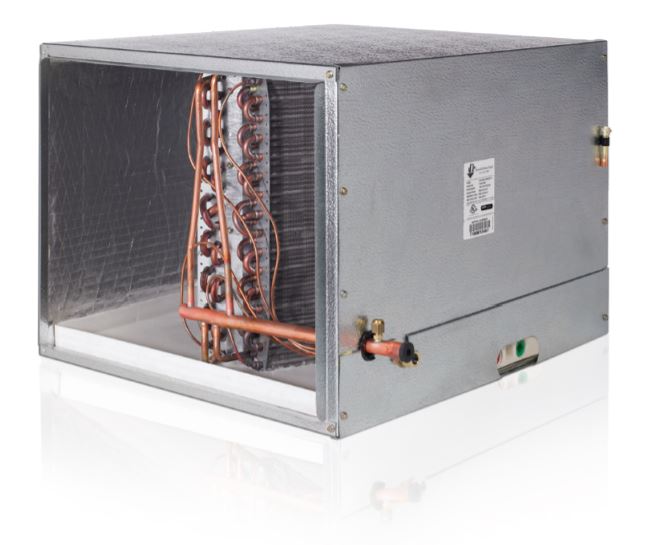

Advanced Distributor Products AD12936E145B2647AP Premier Horizontal Evaporator Coils with TXV for 2 to 3 Ton Air Conditioner

Product Description

The Advanced Distributor Products AD12936E145B2647AP is an efficient horizontal evaporator coil designed for two to three ton air conditioning systems. Built with rifled copper tubing, this model is optimized for improved heat exchange efficiency. Service access is simplified thanks to a short cabinet and a user-friendly design.

• Dual 3/4 FPT condensate drains for versatile installation.
• Non-captive panels allow easy maintenance.
• Microban antimicrobial additive reduces mold and mildew growth.

Product Highlights

This evaporator coil is air pressure tested at 500 psi and comes with a heavy-gauge galvanized cabinet insulated for efficiency. It includes features such as threaded expansion valves that can be installed in the factory or field. Designed for durability and ease of use, it is perfect for HVAC professionals.

Product Information

Standard Information

• Brand: Advanced Distributor Products
• Part Number: L2641

Technical Specifications

• Air Flow Type: Horizontal
• Color: Grey
• Dimensions: 14.5 inches H x 26.5 inches L x 21.5 inches W
• Drain Connection: 3/4 inches FTP
• Duct Flange: 0.75 inches
• Flow Rate: 0.19 to 0.37 cfm
• Line Size (Liquid): 3/8 inches ODF
• Line Size (Suction): 7/8 inches ODF
• Metering Device: Non-Bleed HP TXV
• Nominal Capacity: 36,000 Btu/hr
• Nominal Tonnage: 2 to 3 ton
• Refrigerant Type: R-410A
• Refrigeration Connections: Side of Cabinet
• Series: AD Series
• Weight: 50 lb
