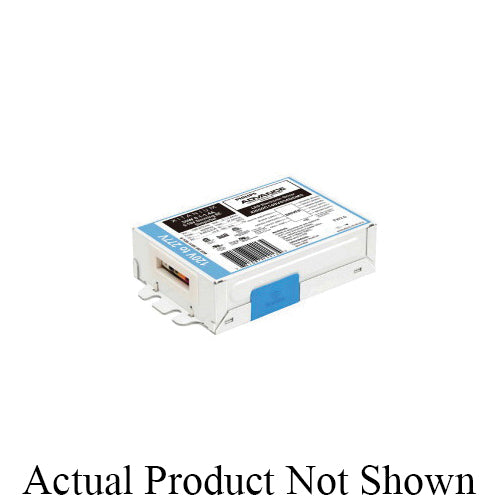

Advance XI180C125V200BSF1M Dimmable LED Driver, 120 to 277 VAC Input, 200 VAC Output, 180 W Power Rating

Product Description

The Advance XI180C125V200BSF1M Dimmable LED Driver offers reliable performance for a wide range of lighting applications. It accepts input voltage from 120 to 277 VAC and provides a steady 200 VAC output with a significant power rating of 180 W. Designed for easy integration, this driver measures nine point four seven inches in length and two point three one inches in width, making it suitable for various setups.

• Programmable output current via SimpleSet technology
• Wide operating voltage range
• Low surge rating compliant with ANSI standards

Product Highlights

This LED driver is ideal for manufacturers creating outdoor luminaires with varied sizes and lumen outputs. It features a power factor greater than zero point nine five, ensuring efficient energy use.

Product Information

Standard Information

• Manufacturer: Signify
• Brand: Advance

Technical Specifications

• Type: Dimmable
• Input Voltage: 120 to 277 VAC
• Output Voltage: 200 VAC
• Power Rating: 180 W
• Amperage Rating: 1.25 A
• Width: 2.31 in
• Length: 9.47 in
• Height: 1.48 in
• Temperature Rating: -40 to 55 deg C
