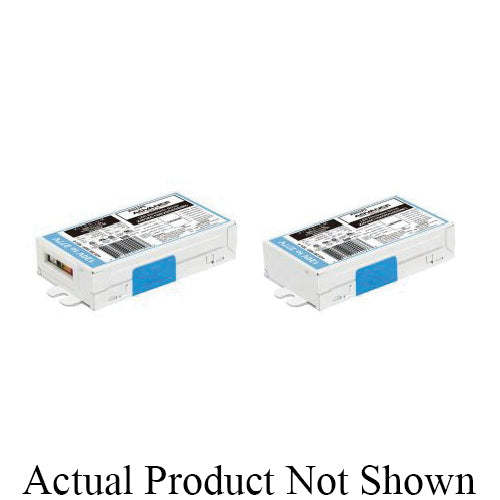

Advance XI036C100V054DSM1M Dimmable LED Driver 120 to 277 VAC Input 54 VAC Output 36 W

Product Description

The Advance XI036C100V054DSM1M is a dimmable LED driver designed for versatility and optimal performance. It operates on a voltage range of 120 to 277 VAC and provides a constant output of 54 VAC at a power rating of thirty-six watts. This driver measures five inches in length and two point thirty-eight inches in width, making it suitable for various lighting applications.

• Supports 0 to 10 VDC dimming
• SimpleSet technology for easy configuration
• High power factor of greater than 0.95

Product Highlights

This LED driver features a long lifespan of over fifty thousand hours and offers adjustable current settings for precise lighting control, ensuring compatibility with a variety of LED fixtures.

Product Information

Standard Information

• Brand: Advance
• Manufacturer: Signify

Technical Specifications

• Type: Dimmable
• Width: 2.38 inches
• Length: 5 inches
• Height: 0.98 inches
• Power Rating: 36 W
• Input Voltage: 120 to 277 VAC
• Output Voltage: 54 VAC
• Amperage Rating: 1 A
• Temperature Rating: -20 to 50 degrees Celsius
