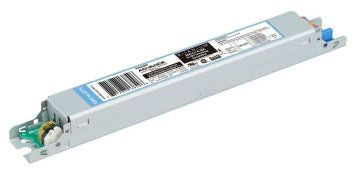

Advance XI020C056V054BST2M LED Driver 20W 120 to 277 VAC Input 22.5 to 54 V Output

Product Description

The Advance XI020C056V054BST2M is an LED driver designed for input voltages from 120 to 277 VAC. It delivers output voltages between 22.5 and 54 volts with a power rating of 20 watts. This LED driver is suitable for various lighting applications.

• Input voltage range: 120 to 277 VAC
• Output voltage range: 22.5 to 54 V
• Power factor greater than 0.95

Product Highlights

This driver provides a reliable solution for linear lighting needs, accommodating dimming systems and offering flexibility for installation and application tuning.

Product Information

Standard Information

• Brand: Advance
• Manufacturer Part Number: XI020C056V054BST2M

Technical Specifications

• Power Rating: 20 W
• Input Amperage Rating: 0.1 to 0.21 A
• Output Amperage Rating: 0.1 to 0.56 A
• Temperature Rating: -20 to 75 deg C
• Dimensions: 10 inches long, 1.18 inches wide, 1 inch high
• Lifespan: 50000+ hours
• Dimming Capability: 0-10 V dimming with a minimum level of 1%
