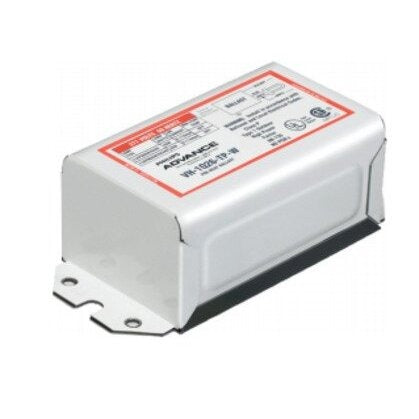

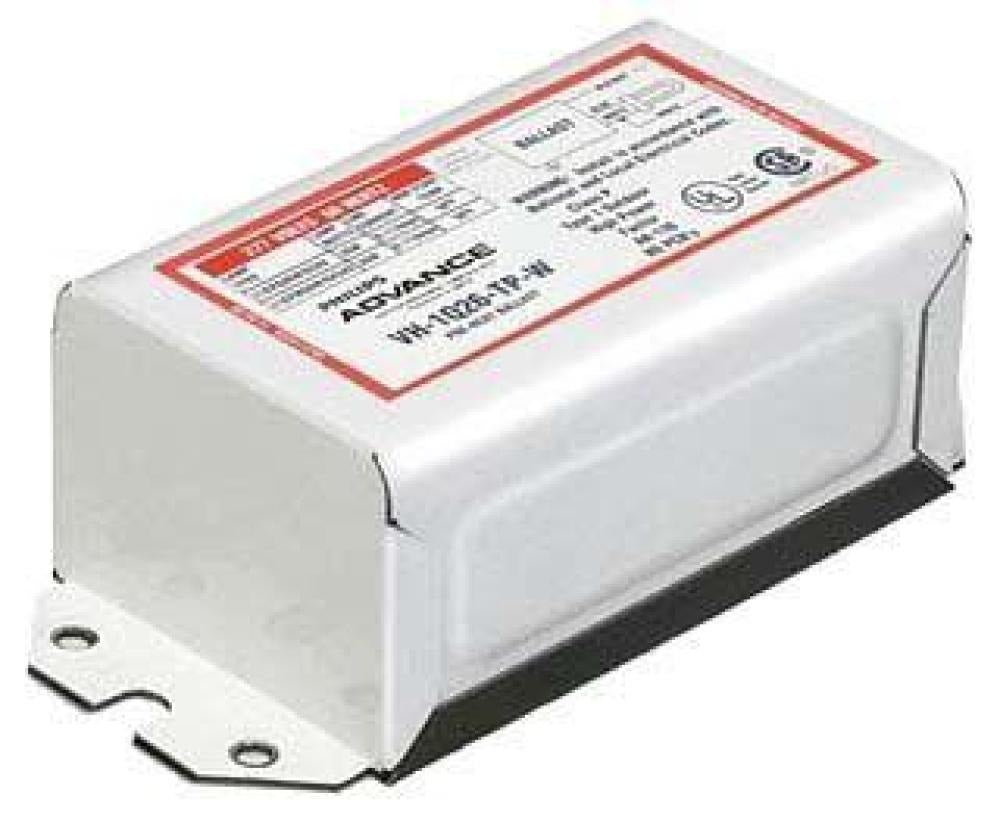

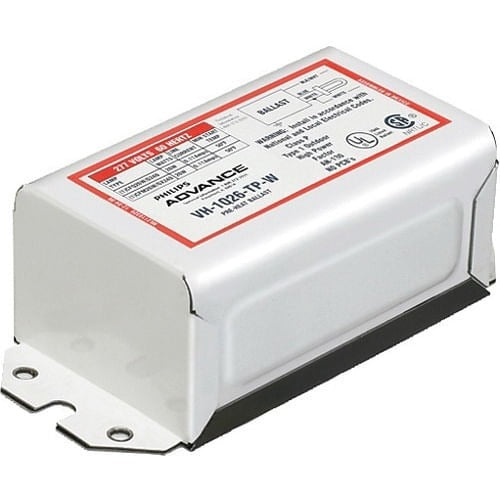

Advance VH1B13TPWI Magnetic Ballast 13W 277V (1-Pack)

Product Description

Advance VH1B13TPWI is a single-lamp magnetic fluorescent ballast rated for 13 W and designed for 277 V operation. It uses a preheat starting circuit with high power factor and provides 24 W input power at 60 Hz with 0.10 A input current. The ballast factor is 0.99, total harmonic distortion up to 30%, minimum starting temperature -18 C, and it is approved to UL 935 and CSA 22.2.

• Preheat magnetic ballast for one 13 W compact fluorescent lamp; compatible with multiple 13 W lamp types.
• Electrical: 277 V input, 0.10 A, 24 W input power, 60 Hz, ballast factor 0.99, power factor 0.88/0.93, THD ≤ 30%.
• Physical and safety: can enclosure with end-exit leads; dimensions ~4.75 x 2.22 x 1.62 in; approvals UL 935 and CSA 22.2.

Product Highlights

Single-lamp 13 W magnetic ballast for 277 V fixtures with preheat start and UL/CSA approvals

Product Information

Standard Information

• Brand: ADVANCE
• Manufacturer Part Number: VH1B13TPWI
• Country of Origin: USA
