Advance VEZ2Q26M2LDK ADV VEZ2Q26M2LD ELE DIM BAL (2)

Product Description

The Advance VEZ2Q26M2LDK is a fluorescent electronic dimming ballast designed for high-frequency use. It allows for continuous dimming from one hundred to five percent. This ballast is made for type four-pin quad tube lamps, specifically supporting two lamps of twenty-six watts each. It operates at an input voltage of two hundred seventy-seven volts alternating current and has a maximum total harmonic distortion rating of ten percent.

• Continuous dimming from 100 to 5 percent
• Compatible with 26W Quad Tube CFL lamps
• High efficiency with power factor of 0.98

Product Highlights

This product is ideal for both commercial and residential lighting applications where dimming capability is required.

Product Information

Standard Information

• Manufacturer: Advance
• UPC: 78108702811

Technical Specifications

• Input Voltage: 277 Volt AC
• Input Current: 0.21 Amp
• Input Power: 16 to 58 Watt
• Frequency Rating: 60 Hertz
• Power Factor: 0.98
• Ballast Factor: 0.05 to 1

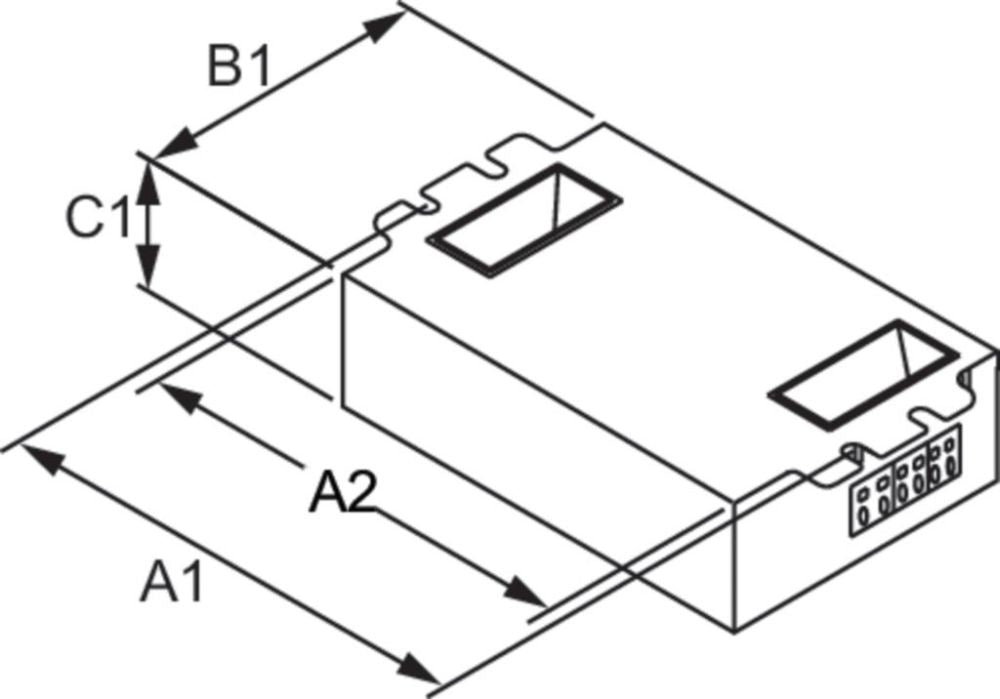

• Dimensions: 4.55 inches Length x 3 inches Width x 1.29 inches Height
• Approval: UL, CSA
