Product Description

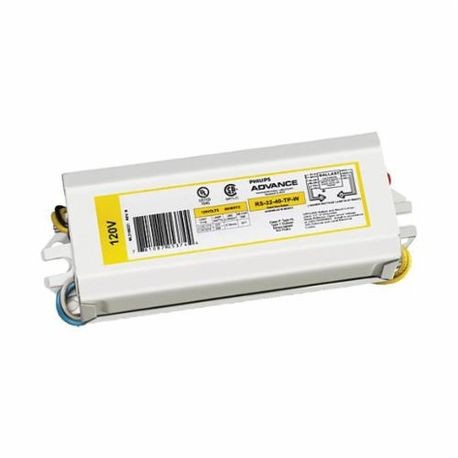

The Advance RS3240TPWI is an electromagnetic fluorescent ballast designed for T9 lamps with a power rating of forty watts and operating at one hundred twenty volts alternating current (VAC). This ballast offers rapid start ability and a ballast factor of 0.6, making it suitable for various applications.
- Designed for T9 lamps
- Works with multiple fluorescent lamp types
- High power factor and noise reduction
Product Highlights
This ballast is designed for efficiency and reliability, functioning in environments like TV or radio stations, libraries, and schools.
Product Information
Standard Information
-
Brand: Advance
-
Manufacturer: Signify
Technical Specifications
-
Series: Standard
-
Material: Metal
-
Voltage Rating: 120 VAC
-

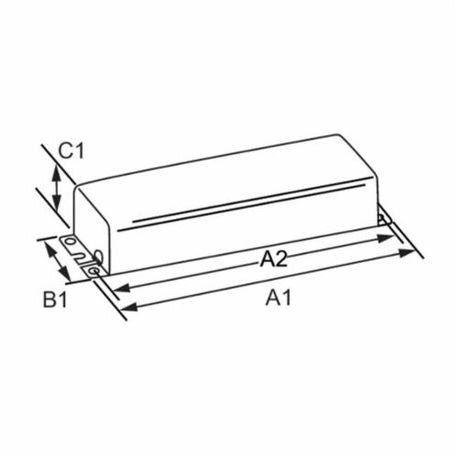

Dimensions: 6.5 inches L x 2.38 inches W x 1.5 inches H
-
Lamp Wattage: 32/40 W
-
Ballast Factor: 0.6
-
Power Factor: 0.61
-
Frequency Rating: 60 Hz
-
Thermal Protection: Class P
-
Number of Lamps: 2
-
Amperage Rating: 0.76 A
-
Minimum Starting Temperature: 50 degrees F
-
Total Harmonic Distortion: 20%
-
Standard & Approvals: UL File No. E14927, CSA File No. 007310, ANSI C82.1, RoHS Compliant
