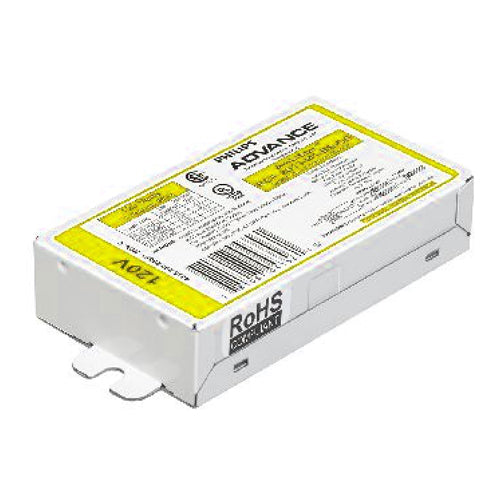

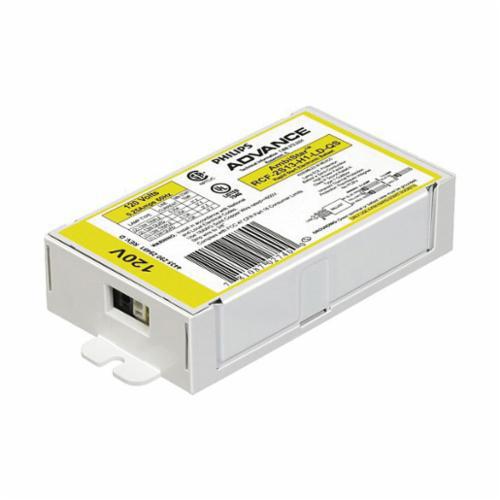

Advance RCF2S13M1BSQS35M Electronic Compact Fluorescent Ballast 120 VAC

Product Description

The Advance RCF2S13M1BSQS35M is an electronic compact fluorescent ballast designed for efficient operation with CFQ13W lamps. It operates at a voltage of one hundred twenty VAC and is suitable for use in residential and hospitality settings.

• Supports two lamps with a ballasted factor of one.
• Features rapid start for quick lamp ignition.
• Compact dimensions for easy installation in stylish fixtures.

Product Highlights

This ballast provides flicker-free performance and meets ENERGY STAR requirements for energy efficiency. It is designed for use with 13 watt lamps and offers superior quiet operation.

Product Information

Standard Information

• Brand: Advance
• Manufacturer: Signify

Technical Specifications

• Wattage: 16/29 W
• Material: Metal
• Lamp Type: CFQ13W

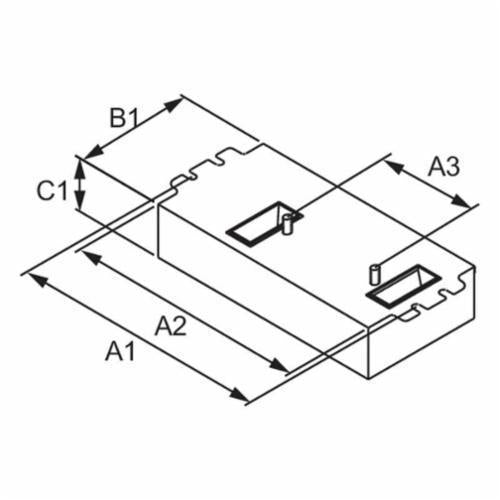

• Dimensions: 4.6 in L x 3 in W x 1.29 in H
• Start Type: Rapid
• Lamp Wattage: 13 W
• Voltage Rating: 120 VAC
• Amperage Rating: 0.13/0.25 A
• Number of Lamps: 2
• Frequency Rating: 60 Hz
• Power Factor: 0.98
• Ballast Factor: 1
• Temperature Range: 85 deg C
• Total Harmonic Distortion: 10 %
• Lamp Base Type: 4-Pin G24q
