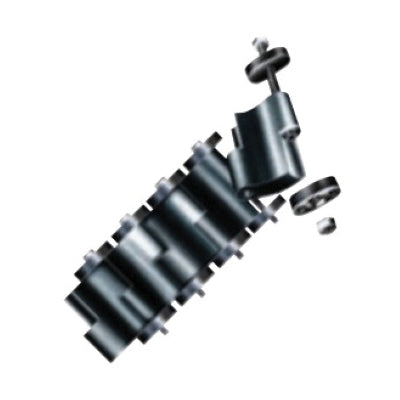

Advance Products And Systems IL575C Innerlynx Mech Seal

Product Description

The ADVANCE PRODUCTS AND SYSTEMS IL575C Innerlynx Mech Seal offers a faster pipe sealing method than caulk, grout, or mastic. These modular mechanical seals are used in a systematic approach for installers to easily seal the annular space between the carrier pipe and the ID of a wall penetration. They are designed to absorb vibrations, shocks, and sound waves.

• Faster pipe sealing method
• Used in a systematic approach for installers to easily seal the annular space
• Absorbs vibrations, shocks and sound waves

Product Highlights

Acts as a sound dampener and electrically isolates the carrier pipe. Made from synthetic rubber with industrial strength pressure plates.

Product Information

Standard Information

• Brand: ADVANCE PRODUCTS AND SYSTEMS
• Manufacturer Part Number: IL575C
• Country of Origin: USA

Technical Specifications

• Series/Model: Model C
• Sealing Element Thickness: 1.81 IN
• Sealing Element Width: 3.78 IN
• Chord Length: 3.16 IN
• Pressure Plate Size: 3.01 IN Length X 1.79 IN Width X 1 IN Depth
• Bolt Size: 1/2 X 6 IN
• Wall Thickness: 6-1/4 IN
• Sealing Range: 1.81 IN Untightened X 2.35 IN Tightened
• Pipe Size: 6.13 - 61.61 IN
• Material: EPDM Seal Element, Composite Pressure Plates
• Finish/Color: Black Seal
• Industry Standards: C/US UL Listed
• Temperature Rating: -40 To 250 DEG F
• Sub Brand: Innerlynx
• Item Name: Modular Mechanical Seal
• Type: Standard
