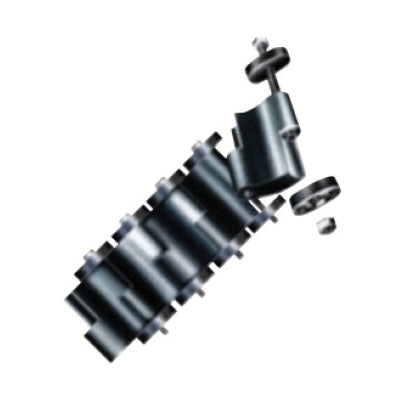

Advance Products And Systems IL525C Innerlynx Mech Seal

Product Description

The ADVANCE PRODUCTS AND SYSTEMS IL525C Innerlynx Mech Seal offers a faster pipe sealing method than caulk, grout, or mastic. It is used to seal the annular space between the carrier pipe and the ID of a wall penetration. It is designed to absorb vibrations, shocks, and sound waves and acts as a sound dampener. It electrically isolates the carrier pipe from the penetrated structure.

• Faster pipe sealing method
• Used to seal the annular space between the carrier pipe and the ID of a wall penetration
• Designed to absorb vibrations, shocks and sound waves

Product Highlights

The Innerlynx seal is ideal for standard applications including above ground, direct underground burial, and wet conditions.

Product Information

Standard Information

• Brand: ADVANCE PRODUCTS AND SYSTEMS
• Manufacturer Part Number: IL525C
• Country of Origin: USA

Technical Specifications

• Series/Model: Model C
• Sealing Element Thickness: 2.2 IN
• Sealing Element Width: 3.8 IN
• Chord Length: 3.95 IN
• Pressure Plate Size: 3.72 IN Length X 2 IN Width X 1.03 IN Depth
• Bolt Size: 1/2 X 6 IN
• Wall Thickness: 6-1/4 IN
• Sealing Range: 2.2 IN Untightened X 2-1/2 IN Tightened
• Pipe Size: 8.13 - 48.03 IN
• Material: EPDM Seal Element, Composite Pressure Plates
• Finish/Color: Black Seal
• Industry Standards: C/US UL Listed
• Temperature Rating: -40 To 250 DEG F
• Sub Brand: Innerlynx
• Item Name: Modular Mechanical Seal
• Type: Standard
• Weight: 2.150 LB
