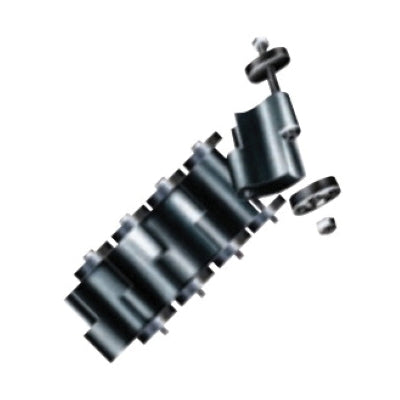

Advance Products And Systems IL500C Innerlynx Mech Seal

Product Description

The ADVANCE PRODUCTS AND SYSTEMS IL500C Innerlynx Mech Seal offers a faster pipe sealing method than caulk, grout, or mastic. These modular mechanical seals are used to seal the annular space between the carrier pipe and the ID of a wall penetration. Designed to absorb vibrations, shocks, and sound waves and electrically isolate the carrier pipe from the penetrated structure.

• Faster pipe sealing method
• Absorbs vibrations, shocks and sound waves
• Acts as a sound dampener

Product Highlights

The Innerlynx seals are made from synthetic rubber with industrial strength pressure plates. Suitable for above ground, direct underground burial, and wet conditions.

Product Information

Standard Information

• Brand: ADVANCE PRODUCTS AND SYSTEMS
• Manufacturer Part Number: IL500C

Technical Specifications

• Series/Model: Model C
• Sealing Element Thickness: 2.39 IN
• Sealing Element Width: 3.9 IN
• Chord Length: 3.9 IN
• Pressure Plate Size: 3.72 IN Length X 2.17 IN Width X 1.04 IN Depth
• Bolt Size: 1/2 X 6 IN
• Wall Thickness: 6-1/4 IN
• Sealing Range: 2.39 IN Untightened X 2.81 IN Tightened
• Pipe Size: 8.13 - 50.8 IN
• Material: EPDM Seal Element, Composite Pressure Plates
• Finish/Color: Black Seal
• Industry Standards: C/US UL Listed
• Temperature Rating: -40 To 250 DEG F
• Sub Brand: Innerlynx
• Item Name: Modular Mechanical Seal
• Type: Standard
• Nuts and bolts: zinc plated carbon steel
• Application: For most standard applications including above ground, direct underground burial, wet conditions and where cathodic protection is desired
