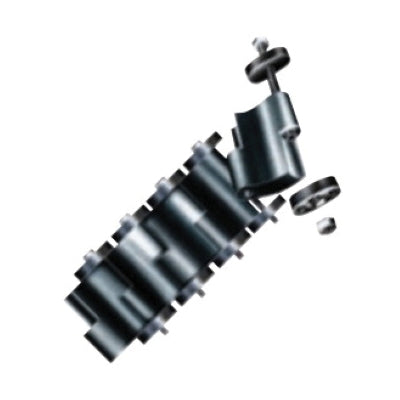

Advance Products And Systems IL475C Innerlynx Mech Seal

Product Description

The ADVANCE PRODUCTS AND SYSTEMS IL475C Innerlynx Mech Seal offers a faster pipe sealing method than caulk, grout, or mastic. Innerlynx are used to easily seal the annular space between the carrier pipe and the ID of a wall penetration. They are designed to absorb vibrations, shocks, and sound waves and act as a sound dampener while electrically isolating the carrier pipe.

• Faster pipe sealing method
• Absorbs vibrations, shocks and sound waves
• Acts as a sound dampener

Product Highlights

The Innerlynx Standard Modular Mechanical Seal features a 1.61 IN sealing element thickness, 3.16 IN sealing element width and can be used for most standard applications.

Product Information

Standard Information

• Brand: ADVANCE PRODUCTS AND SYSTEMS
• Manufacturer Part Number: IL475C
• Country of Origin: USA

Technical Specifications

• Series/Model: Model C
• Sealing Element Thickness: 1.61 IN
• Sealing Element Width: 3.16 IN
• Chord Length: 2.68 IN
• Pressure Plate Size: 2.6 IN Length X 1.48 IN Width X 0.78 IN Depth
• Bolt Size: 3/8 X 5-1/2 IN
• Wall Thickness: 5-5/8 IN
• Sealing Range: 1.61 IN Untightened X 2 IN Tightened
• Pipe Size: 2.38 - 48.03 IN
• Material: EPDM Seal Element, Composite Pressure Plates
• Finish/Color: Black Seal
• Industry Standards: C/US UL Listed
• Temperature Rating: -40 To 250 DEG F
• Sub Brand: Innerlynx
• Item Name: Modular Mechanical Seal
• Type: Standard
• Nuts and bolts: zinc plated carbon steel
• Application: For most standard applications including above ground, direct underground burial, wet conditions and where cathodic protection is desired
