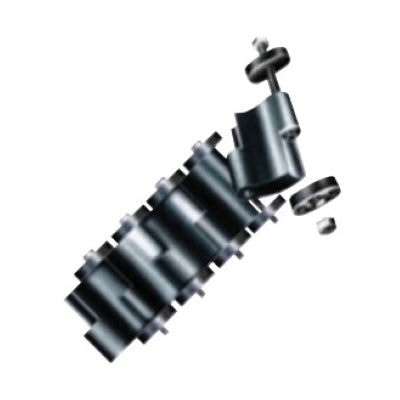

Advance Products And Systems IL425C Innerlynx Mech Seal

Product Description

The ADVANCE PRODUCTS AND SYSTEMS IL425C Innerlynx Mech Seal offers a faster pipe sealing method than caulk, grout, or mastic. It is used to seal the annular space between the carrier pipe and the ID of a wall penetration. It is designed to absorb vibrations, shocks, and sound waves and electrically isolates the carrier pipe from the penetrated structure.

• Faster pipe sealing method
• Used to seal the annular space between the carrier pipe and the ID of a wall penetration
• Absorbs vibrations, shocks and sound waves

Product Highlights

The Innerlynx Mech Seal acts as a sound dampener and electrically isolates the carrier pipe from the penetrated structure. Suitable for above ground, direct underground burial, and wet conditions.

Product Information

Standard Information

• Brand: ADVANCE PRODUCTS AND SYSTEMS
• Manufacturer Part Number: IL425C

Technical Specifications

• Series/Model: Model C
• Sealing Element Thickness: 1.13 IN
• Sealing Element Width: 3.54 IN
• Chord Length: 3.6 IN
• Pressure Plate Size: 3.45 IN Length X 1.03 IN Width X 1.18 IN Depth
• Bolt Size: 3/8 X 6 IN
• Wall Thickness: 6-1/4 IN
• Sealing Range: 1.13 IN Untightened X 1-1/2 IN Tightened
• Pipe Size: 6.9 - 48.03 IN
• Material: EPDM Seal Element, Composite Pressure Plates
• Finish/Color: Black Seal
• Industry Standards: C/US UL Listed
• Temperature Rating: -40 To 250 DEG F
• Sub Brand: Innerlynx
• Item Name: Modular Mechanical Seal
• Type: Standard
