Advance Products And Systems IL400C Il-400c Innerlynx Mech Seal

Product Description

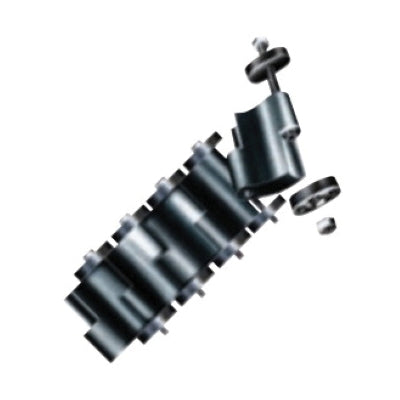

The ADVANCE PRODUCTS AND SYSTEMS IL400C Innerlynx Modular Mechanical Seal offers a faster pipe sealing method than caulk, grout, or mastic. Innerlynx are used to easily seal the annular space between the carrier pipe and the ID of a wall penetration. Designed to absorb vibrations, shocks, and sound waves and act as a sound dampener while electrically isolating the carrier pipe.

• Faster pipe sealing method
• Absorbs vibrations, shocks and sound waves
• Acts as a sound dampener

Product Highlights

The Innerlynx Standard Modular Mechanical Seal is made from synthetic rubber with industrial strength pressure plates. It is C/US UL Listed and has a temperature rating of -40 To 250 DEG F.

Product Information

Standard Information

• Brand: ADVANCE PRODUCTS AND SYSTEMS
• Manufacturer Part Number: IL400C
• Country of Origin: USA

Technical Specifications

• Series/Model: Model C
• Sealing Element Thickness: 1.41 IN
• Sealing Element Width: 3.56 IN
• Chord Length: 3.63 IN
• Pressure Plate Size: 3.51 IN Length X 1.33 IN Width X 1.06 IN Depth
• Bolt Size: 3/8 X 6 IN
• Wall Thickness: 6-1/4 IN
• Sealing Range: 1.41 IN Untightened X 1.81 IN Tightened
• Pipe Size: 6.13 - 48.03 IN
• Material: EPDM Seal Element, Composite Pressure Plates
• Finish/Color: Black Seal
• Industry Standards: C/US UL Listed
• Temperature Rating: -40 To 250 DEG F
• Sub Brand: Innerlynx
• Item Name: Modular Mechanical Seal
• Type: Standard
• Nuts and bolts: zinc plated carbon steel
• Application: For most standard applications including above ground, direct underground burial, wet conditions and where cathodic protection is desired
