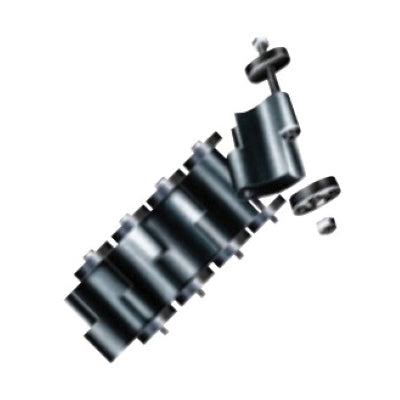

Advance Products And Systems IL340C Innerlynx Mech Seal

Product Description

The ADVANCE PRODUCTS AND SYSTEMS IL340C Innerlynx Mech Seal offers a faster pipe sealing method than caulk, grout, or mastic. These modular mechanical seals are used to seal the annular space between the carrier pipe and the ID of a wall penetration. They are designed to absorb vibrations, shocks, and sound waves and electrically isolate the carrier pipe. Made from synthetic rubber with industrial strength pressure plates.

• Faster pipe sealing method
• Used to seal the annular space between the carrier pipe and the ID of a wall penetration
• Designed to absorb vibrations, shocks and sound waves

Product Highlights

The Innerlynx Mech Seal acts as a sound dampener and electrically isolates the carrier pipe from the penetrated structure.

Product Information

Standard Information

• Brand: ADVANCE PRODUCTS AND SYSTEMS
• Manufacturer Part Number: IL340C
• Country of Origin: USA

Technical Specifications

• Series/Model: Model C
• Sealing Element Thickness: 1.02 IN
• Sealing Element Width: 2-3/4 IN
• Chord Length: 1.52 IN
• Pressure Plate Size: 1-1/2 IN Length X 0.96 IN Width X 0.7 IN Depth
• Bolt Size: 5/16 X 4-1/2 IN
• Wall Thickness: 5-1/8 IN
• Sealing Range: 1.02 IN Untightened X 1.32 IN Tightened
• Pipe Size: 1.38 - 12-3/4 IN
• Material: EPDM Seal Element, Composite Pressure Plates
• Finish/Color: Black Seal
• Industry Standards: C/US UL Listed
• Temperature Rating: -40 To 250 DEG F
• Sub Brand: Innerlynx
• Item Name: Modular Mechanical Seal
• Type: Standard
• Weight: 0.350 LB
