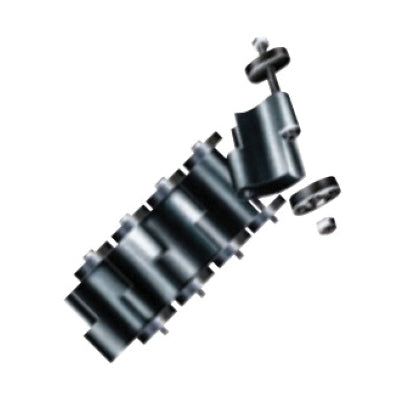

Advance Products And Systems IL315C Innerlynx Mech Seal

Product Description

The ADVANCE PRODUCTS AND SYSTEMS IL315C Innerlynx Mech Seal offers a faster pipe sealing method than caulk, grout, or mastic. It is used to seal the annular space between the carrier pipe and the ID of a wall penetration. Designed to absorb vibrations, shocks, and sound waves, it also acts as a sound dampener.

• Faster pipe sealing method
• Used to seal the annular space between the carrier pipe and the ID of a wall penetration
• Designed to absorb vibrations, shocks and sound waves

Product Highlights

The Innerlynx Mech Seal electrically isolates the carrier pipe from the penetrated structure and is C/US UL Listed.

Product Information

Standard Information

• Brand: ADVANCE PRODUCTS AND SYSTEMS
• Manufacturer Part Number: IL315C
• Country of Origin: USA

Technical Specifications

• Series/Model: Model C
• Sealing Element Thickness: 0.83 IN
• Sealing Element Width: 2.49 IN
• Chord Length: 1.47 IN
• Pressure Plate Size: 1.46 IN Length X 0.79 IN Width X 0.48 IN Depth
• Bolt Size: 5/16 X 3-1/2 IN
• Wall Thickness: 3-5/8 IN
• Sealing Range: 0.83 IN Untightened X 1.03 IN Tightened
• Pipe Size: 1.63 - 12.4 IN
• Material: EPDM Seal Element, Composite Pressure Plates
• Finish/Color: Black Seal
• Industry Standards: C/US UL Listed
• Temperature Rating: -40 To 250 DEG F
• Sub Brand: Innerlynx
• Item Name: Modular Mechanical Seal
• Type: Standard
• Weight: 0.250 LB
