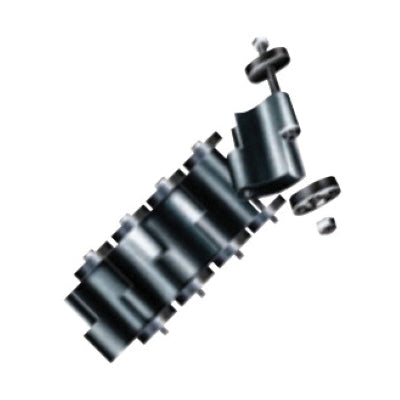

Advance Products And Systems IL300C Innerlynx Mech Seal

Product Description

The ADVANCE PRODUCTS AND SYSTEMS IL300C Innerlynx Mech Seal offers a faster pipe sealing method than caulk, grout, or mastic. These modular mechanical seals are used to easily seal the annular space between the carrier pipe and the ID of a wall penetration. They also absorb vibrations, shocks, and sound waves and act as a sound dampener while electrically isolating the carrier pipe.

• Faster pipe sealing method
• Absorbs vibrations, shocks and sound waves
• Acts as a sound dampener

Product Highlights

The Innerlynx Mech Seal is made from synthetic rubber with industrial strength US manufactured pressure plates. Available in more sizes than offered by any other US manufacturer.

Product Information

Standard Information

• Brand: ADVANCE PRODUCTS AND SYSTEMS
• Manufacturer Part Number: IL300C
• Country of Origin: USA

Technical Specifications

• Series/Model: Model C
• Sealing Element Thickness: 0.7 IN
• Sealing Element Width: 2.57 IN
• Chord Length: 1-1/2 IN
• Pressure Plate Size: 1.52 IN Length X 0.68 IN Width X 0.43 IN Depth
• Bolt Size: 5/16 X 3-1/2 IN
• Wall Thickness: 3-5/8 IN
• Sealing Range: 0.7 IN Untightened X 0.88 IN Tightened
• Pipe Size: 1.32 - 9.84 IN
• Material: EPDM Seal Element, Composite Pressure Plates
• Finish/Color: Black Seal
• Industry Standards: C/US UL Listed
• Temperature Rating: -40 To 250 DEG F
• Sub Brand: Innerlynx
• Item Name: Modular Mechanical Seal
• Type: Standard
• Nuts and bolts: zinc plated carbon steel
• Application: For most standard applications including above ground, direct underground burial, wet conditions and where cathodic protection is desired
