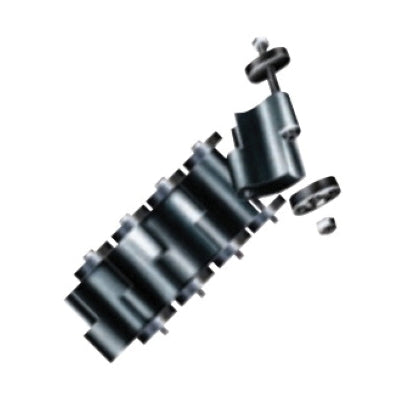

Advance Products And Systems IL275C Innerlynx Mech Seal

Product Description

The ADVANCE PRODUCTS AND SYSTEMS IL275C Innerlynx Mech Seal offers a faster pipe sealing method than caulk, grout, or mastic. It is used to seal the annular space between the carrier pipe and the ID of a wall penetration. It is designed to absorb vibrations, shocks, and sound waves and electrically isolates the carrier pipe.

• Faster pipe sealing method
• Used to seal the annular space between the carrier pipe and the ID of a wall penetration
• Designed to absorb vibrations, shocks and sound waves

Product Highlights

The Innerlynx Mech Seal acts as a sound dampener and electrically isolates the carrier pipe from the penetrated structure. Suitable for above ground, direct underground burial, and wet conditions.

Product Information

Standard Information

• Brand: ADVANCE PRODUCTS AND SYSTEMS
• Manufacturer Part Number: IL275C
• Country of Origin: USA

Technical Specifications

• Series/Model: Model C
• Sealing Element Thickness: 0.63 IN
• Sealing Element Width: 1.8 IN
• Chord Length: 0.89 IN
• Pressure Plate Size: 0.9 IN Length X 0.63 IN Width X 0.36 IN Depth
• Bolt Size: 10/32 X 2-1/2 IN
• Wall Thickness: 2-1/2 IN
• Sealing Range: 0.63 IN Untightened X 0.78 IN Tightened
• Pipe Size: 1/2 - 1.05 IN
• Material: EPDM Seal Element, Composite Pressure Plates
• Finish/Color: Black Seal
• Industry Standards: C/US UL Listed
• Temperature Rating: -40 To 250 DEG F
• Sub Brand: Innerlynx
• Item Name: Modular Mechanical Seal
• Type: Standard
