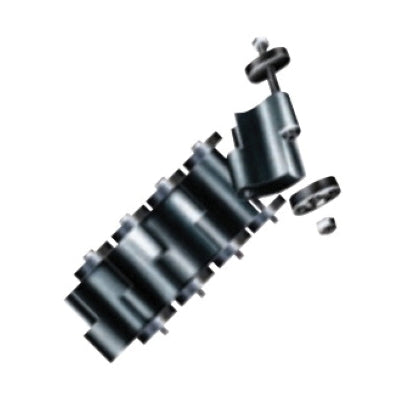

Advance Products And Systems IL200C Innerlynx Mech Seal

Product Description

The ADVANCE PRODUCTS AND SYSTEMS IL200C Innerlynx Mech Seal offers a faster pipe sealing method than caulk, grout, or mastic. These modular mechanical seals are used to seal the annular space between the carrier pipe and the ID of a wall penetration. Designed to absorb vibrations, shocks, and sound waves, acting as a sound dampener.

• Faster pipe sealing method
• Used to seal the annular space between the carrier pipe and the ID of a wall penetration
• Designed to absorb vibrations, shocks and sound waves

Product Highlights

The Innerlynx Mech Seal electrically isolates the carrier pipe, is made from synthetic rubber with industrial strength pressure plates, and is C/US UL Listed.

Product Information

Standard Information

• Brand: ADVANCE PRODUCTS AND SYSTEMS
• Manufacturer Part Number: IL200C
• Country of Origin: USA

Technical Specifications

• Series/Model: Model C
• Sealing Element Thickness: 1/2 IN
• Sealing Element Width: 1.8 IN
• Chord Length: 1.15 IN
• Pressure Plate Size: 1.14 IN Length X 0.45 IN Width X 0.32 IN Depth
• Bolt Size: 10/32 X 2-1/2 IN
• Wall Thickness: 2-1/2 IN
• Sealing Range: 1/2 IN Untightened X 0.63 IN Tightened
• Pipe Size: 0.84 - 12-3/4 IN
• Material: EPDM Seal Element, Composite Pressure Plates
• Finish/Color: Black Seal
• Industry Standards: C/US UL Listed
• Temperature Rating: -40 To 250 DEG F
• Sub Brand: Innerlynx
• Item Name: Modular Mechanical Seal
• Type: Standard
