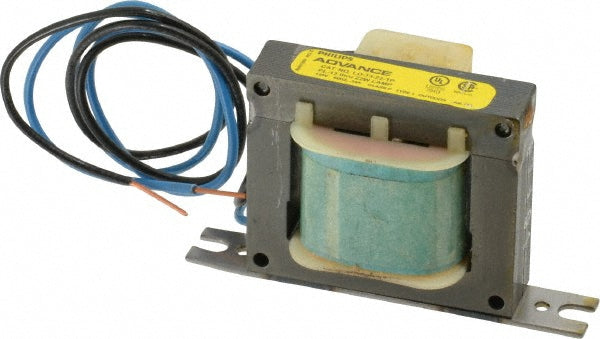

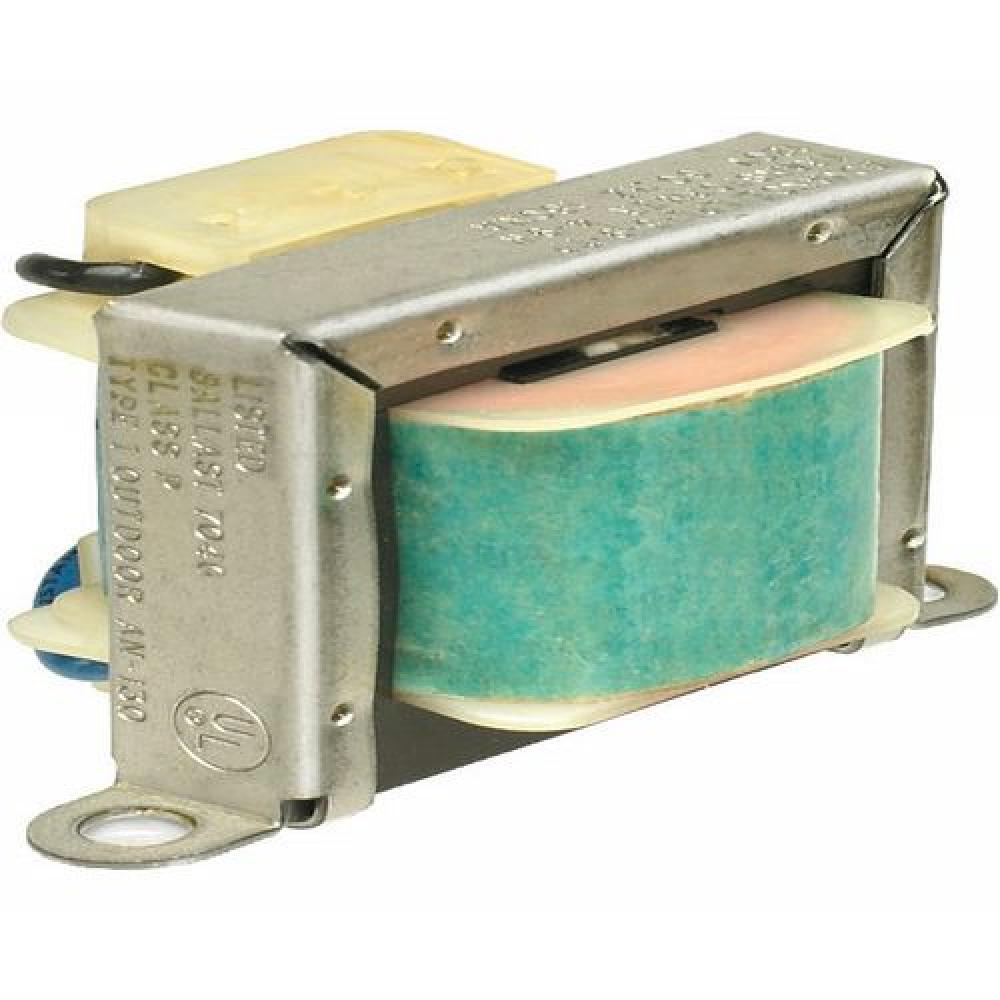

Advance LO1322TPM Philips Advance 1 Lamp Fluorescent Ballast 0 to 39 Watt

Product Description

The ADVANCE LO1322TPM is a Philips Advance 1 lamp fluorescent ballast operating at 120V with an amperage range of 0.21 to 0.29 Amp and a power range of 0 to 39 Watt. This magnetic ballast features preheat starting method and is nondimmable. It provides thermal protection and supports T4 and T5 lamps.

• Supports 1 Lamp
• Operates at 120 Volt
• Features thermal protection

Product Highlights

This magnetic ballast is designed for fluorescent lamps, offering reliable performance and thermal protection.

Product Information

Standard Information

• Brand: ADVANCE
• Manufacturer Part Number: LO1322TPM
• Country of Origin: USA

Technical Specifications

• Ballast Type: Magnetic
• Lamp Wattage Range: 0 to 39
• Lamp Type: T4; T5
• Lamp Starting Method: Preheat Ballast
• Ballast Factor Range: Normal (0.75 to 0.99) & Normal or High (1.00 to 1.19)
• Voltage: 120
• Lamp Wattage: 13; 18
• Amperage Range: 0.21 to 0.29
• Ballast Factor: 0.89; 1.00
• Can Code: M (6.5 x 2.375 x 1.5)
• Additional Information: Thermal Protection
• Number Of Lamps: 1
• Amperage Rating: 0.28
• Frequency Rating: 60
• Material: Metal
• Minimum Starting Temperature: 50
• Power Factor: NORMAL
• Start Type: Preheat
• Thermal Protection: Class P
• Total Harmonic Distortion: 15%
• Wattage: 20
• Country of Origin: USA
• Length: 3.0598 IN
• RoHS Compliance: Contact Manufacturer
