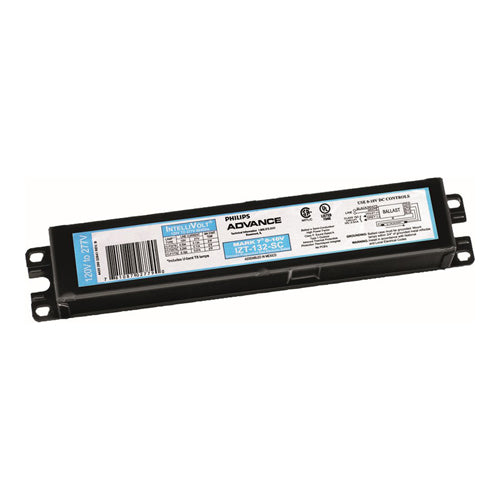

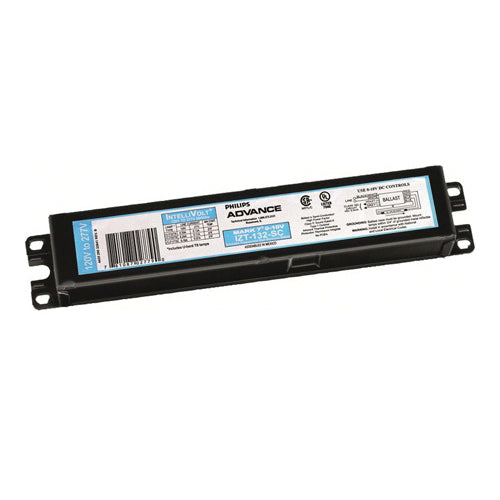

Advance IZT4S3235M Controllable Dimmable Fluorescent Ballast 32W 120 to 277 VAC

Product Description

The Advance IZT4S3235M is a controllable dimmable fluorescent ballast designed for T8 lamps, providing efficient lighting solutions for various applications. This ballast operates with a voltage range of one hundred twenty to two hundred seventy-seven VAC. The IZT4S3235M model supports programmed start technology, making it suitable for energy-efficient lighting designs.

• Compatible with various controllers.
• Designed for T8 lamp compatibility.
• Flexible wattage range from twenty-five to one hundred eighteen watts.

Product Highlights

This ballast allows for dimming capabilities, enhancing energy savings and contributing to sustainable lighting practices.

Product Information

Standard Information

• Manufacturer: Signify
• Brand: Advance

Technical Specifications

• Type: Controllable
• Wattage: 32 W
• Voltage Rating: 120 to 277 VAC
• Dimmable: Yes
• Number of Lamps: 4

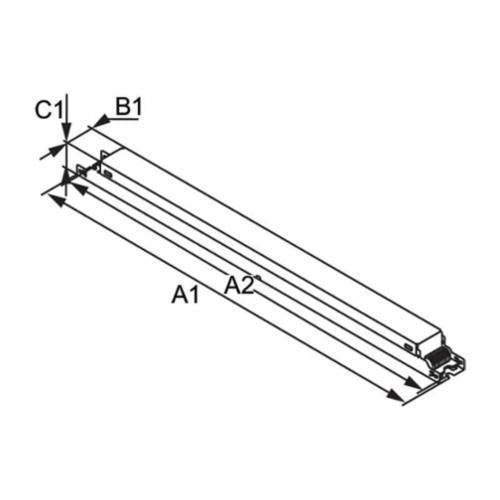

• Dimensions: 16.7 in L x 1.18 in W x 1 in H
• Power Factor: 0.99
• Ballast Factor: 0.05 to 0.88
• Frequency Rating: 50/60 Hz
• Material: Metal
• Total Harmonic Distortion: 10%
• Minimum Starting Temperature: 10 deg C
• Temperature Range: 70 deg C
• Amperage Rating: 0.42 to 0.98 A
