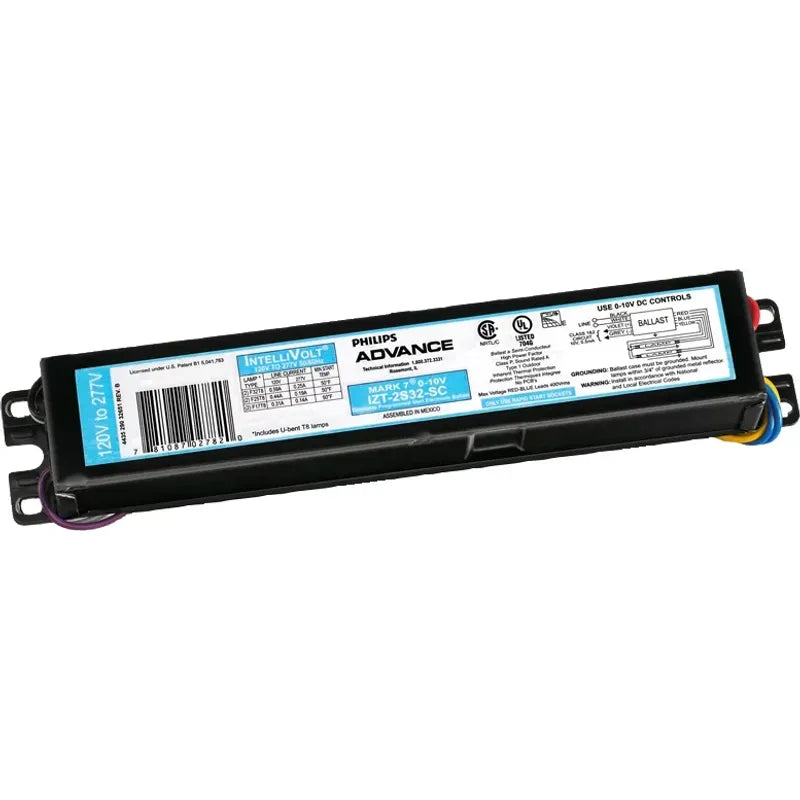

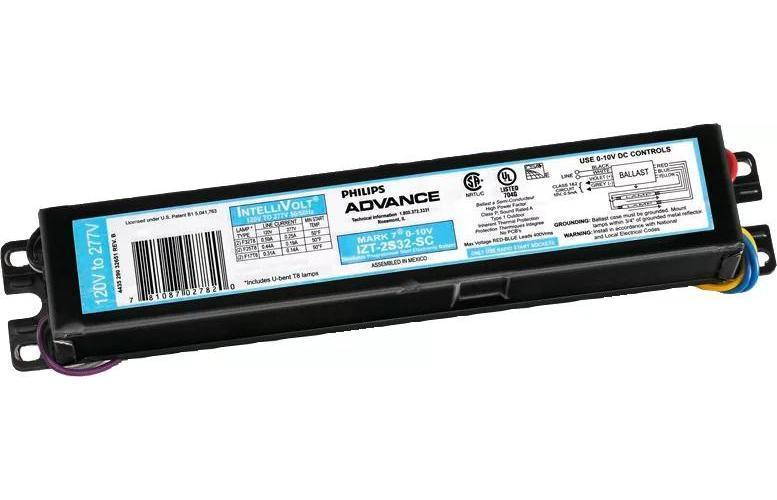

Advance IZT2PSP32SC35M Electronic Dimming Ballast 32 W

Product Description

The ADVANCE IZT2PSP32SC35M is a MARK 7 0-10V series dimmable electronic ballast with separate control leads, compatible with various controllers, including occupancy sensors and building management systems. Designed for linear fluorescent and 4-pin compact fluorescent lamps, this ballast supports sustainable lighting techniques. Operates from 120 to 277 VAC and is suitable for T8 lamps.

• IntelliVolt multiple voltage technology enables operation from 120 to 277 VAC, 50/60 Hz
• Philips Advance fluorescent electronic and magnetic ballasts are designed and manufactured to engineering standards correlating to an average life expectancy of 50000 hr of operation at maximum rated case temperature
• Blue label color coding

Product Highlights

This ballast optimizes daylight harvesting, occupancy sensors, and load shedding for an affordable and versatile controllable lighting solution.

Product Information

Standard Information

• Brand: ADVANCE
• Manufacturer Part Number: IZT2PSP32SC35M
• Country of Origin: MEX

Technical Specifications

• Amperage Rating: 0.23 to 0.54 A
• Dimmable: Yes
• Frequency Rating: 50/60 Hz
• Material: Metal
• Minimum Starting Temperature: 50 deg F
• Number of Lamps: 2
• Power Factor: 0.88
• Temperature Range: 70 deg C
• Thermal Protection: Class P
• Total Harmonic Distortion: 10%
• Type: Controllable Electronic Linear Small Can
• Wattage: 11 to 67 W
• Lamp Type: T8
• Lamp Wattage: 32 W
• Voltage Rating: 120 to 277 VAC
• Start Type: Programmed/Rapid
• Ballast Factor: 0.88
• Wiring: Series
• Approval: UL, CSA, CEC
• RoHS Compliant: RoHS Compliant
• Ballast Efficacy Factor: 1.49
• Lamp Current Crest Factor: 1.6
• Housing Material: Metal
• BT Description: IZT2PSP32SC35M
• Mfg Ordering Code: IZT2PSP32SC35M
• Mfg: ADVANCE
• Mfg Prod Description: IZT2PSP32SC35M
• ANSI Code: N/A
• Ignition Time: 1.500000000000
• Conductor Size: 18 AWG Solid
• Sub Brand: Mark
• Standard: CSA certificate;UL certificate;CEC Listing;CEE Rated;CSA E;NEMA Premium;RoHS Compliant
• Country Of Origin: MEX
